Design a transformer-coupled class A amplifier with high efficiency to supply an output power of $PL = 10 W$ at a load resistance of $R L = 4Ω$ . Assume a DC supply voltage of Vcc $= 12 V$ . What should be the value of $RB$ ? $(β = 100, VCE ($ sat $) = 0.7 V)$ Lüften birini seçin: a. $597Ω$ b. $677Ω$ c. $895Ω$ d. $544Ω$ e. $1000Ω$

Question

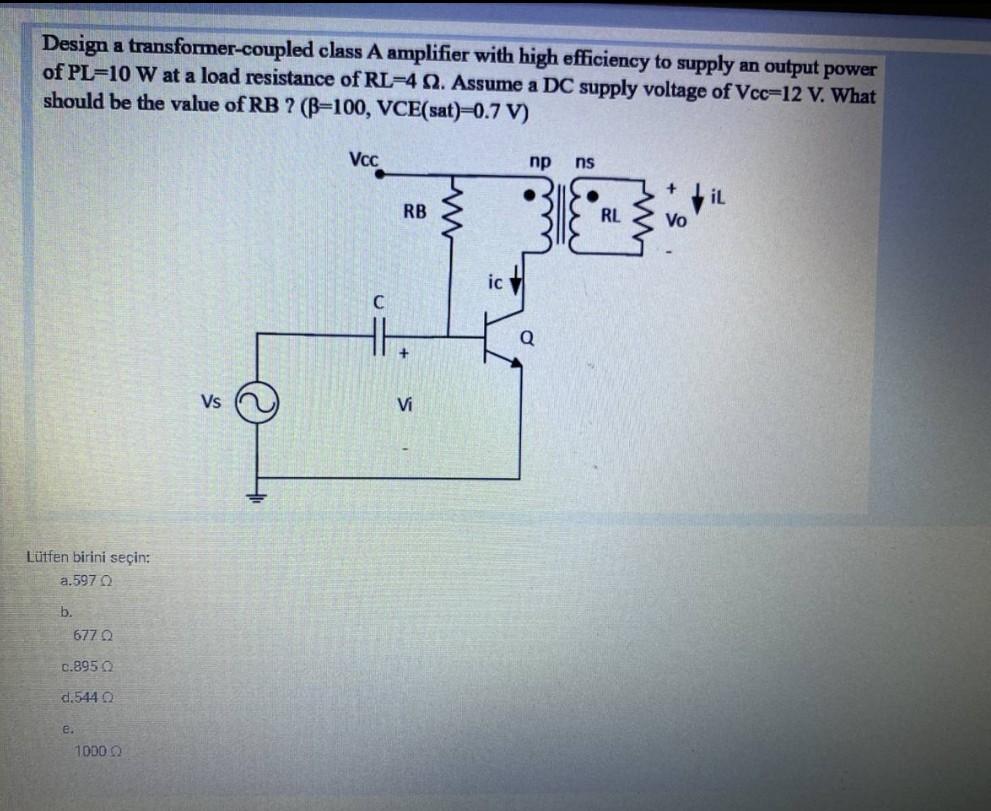

student submitted image, transcription available below

Design a transformer-coupled class A amplifier with high efficiency to supply an output power of

PL = 10 W

at a load resistance of

R L = 4Ω

. Assume a DC supply voltage of Vcc

= 12 V

. What should be the value of

RB

?

(β = 100, VCE (

sat

) = 0.7 V)

Lüften birini seçin: a.

597Ω

b.

677Ω

c.

895Ω

d.

544Ω

e.

1000Ω
