(Solved): Determine the horizontal and vertical components of reaction at the pins A,B, and C of the two-memb ...

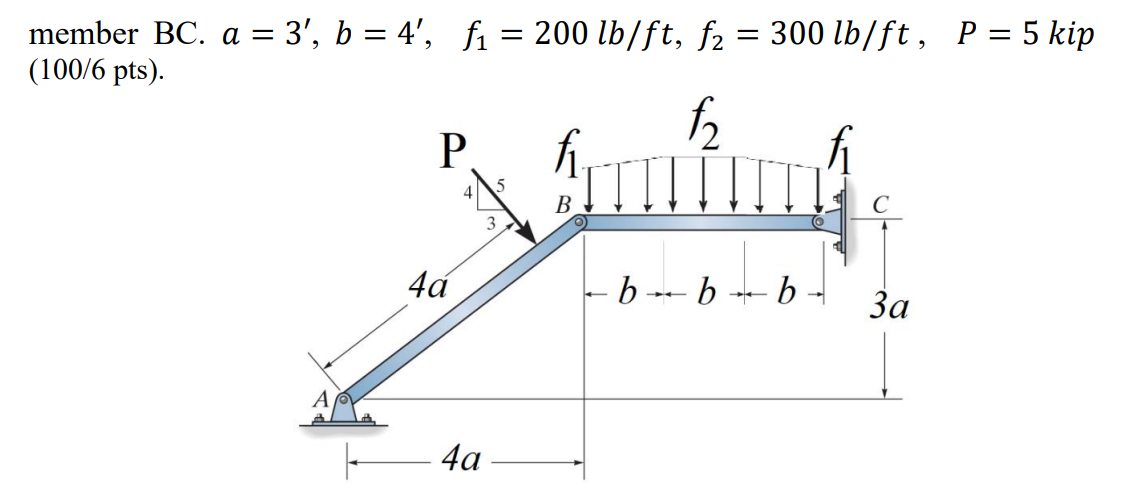

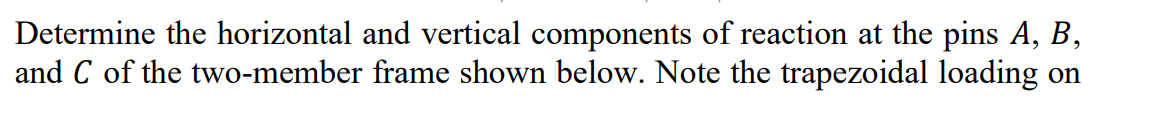

Determine the horizontal and vertical components of reaction at the pins A,B, and C of the two-member frame shown below. Note the trapezoidal loading on
member BC. a=3′,b=4′,f1=200lb/ft,f2=300lb/ft,P=5kip (100/6 pts).
