(Solved): Determine the torsional spring constant in \( N-m / r a d \) of the steel \( (G=80 \mathrm{GPa}) \) ...



Determine the torsional spring constant in \( N-m / r a d \) of the steel \( (G=80 \mathrm{GPa}) \) propeller shaft shown in

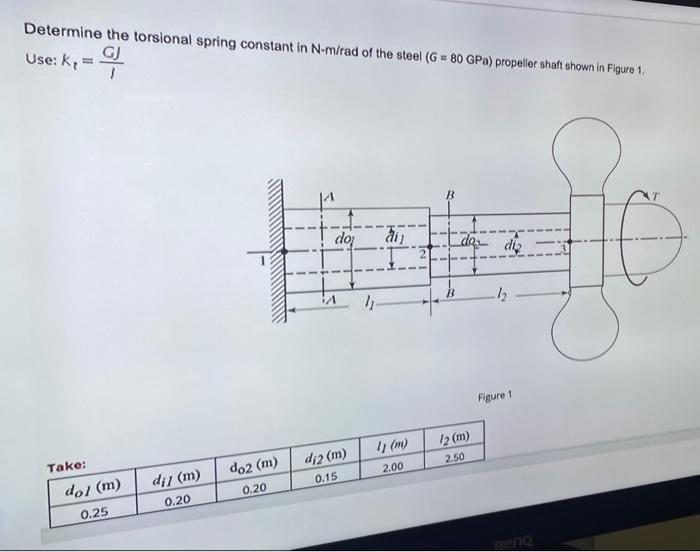

Determine the torsional spring constant in \( N-m / r a d \) of the steel \( (G=80 \mathrm{GPa}) \) propeller shaft shown in Flgure 1 . Use: \( k_{t}=\frac{G J}{1} \) Figure 1


We have an Answer from Expert

View Expert Answer

Expert Answer

Given data:- Shaft 1 di1=0.20m,d01=0.25m and length l1=2m Shaft 2 di2=0.15m,d02=0.20m and length l2=2.50m And modulus of rigidity G=80GPa
