(Solved): Do only the Free Body Diagram please!
A 250400mm plate of mass m=19kg and a 300mm diame ...
Do only the Free Body Diagram please!

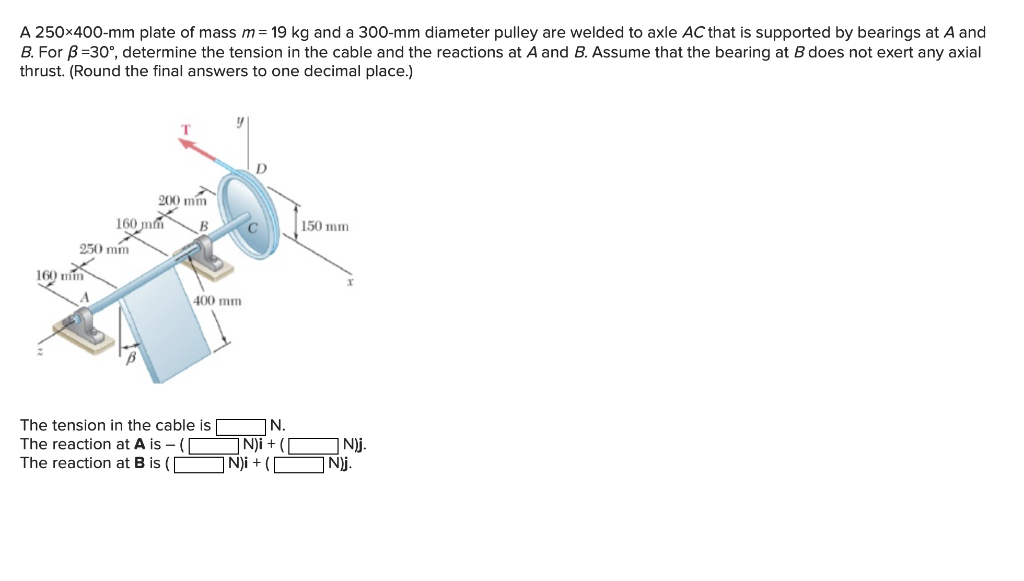

A 250×400−mm plate of mass m=19kg and a 300−mm diameter pulley are welded to axle AC that is supported by bearings at A and B. For β=30∘, determine the tension in the cable and the reactions at A and B. Assume that the bearing at B does not exert any axial thrust. (Round the final answers to one decimal place.) The tension in the cable is The reaction at A is -1 N. The reaction at B is (
Given- A welded pulley is given figureMass(m)= 19kg Diameter of pulley (d)=300 mm Size=250x400 mm Angle at Beeta (B)=30° Find- Tension in the cable and support reaction
