(Solved): Drag and drop the options to CORRECTLY label the diagram below. The diagram below represents a lead ...

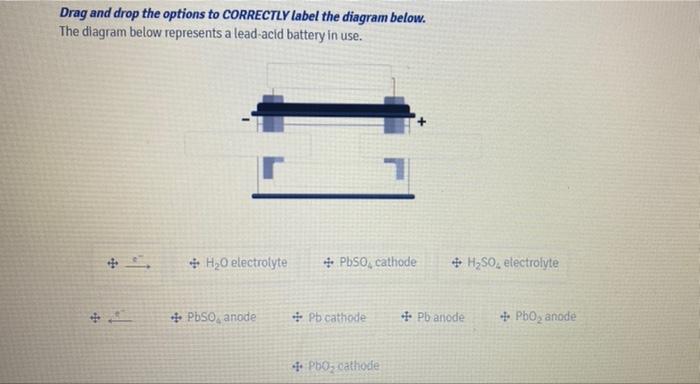

Drag and drop the options to CORRECTLY label the diagram below. The diagram below represents a lead-acid battery in use. +H?O electrolyte +PbSO, cathode ++PbSO, anode +Pb cathode + PbO? cathode + H?SO, electrolyte + Pb anode + PbO anode
Expert Answer
Answer : . Explanation: > In a Lead-acid battery, the negative electrode (anode) is made up of Lead (Pb). While the positive electrode (cathode) is made up of PbO2 . > The electrolyte solution used is dilute sulphuric acid (H2SO4) > H2SO4 being an ac
