(Solved): EEA1501_PRACTICAL PRACTICE EXPERIMENT: No Marks Allocated Objective: To familiarize the student with ...

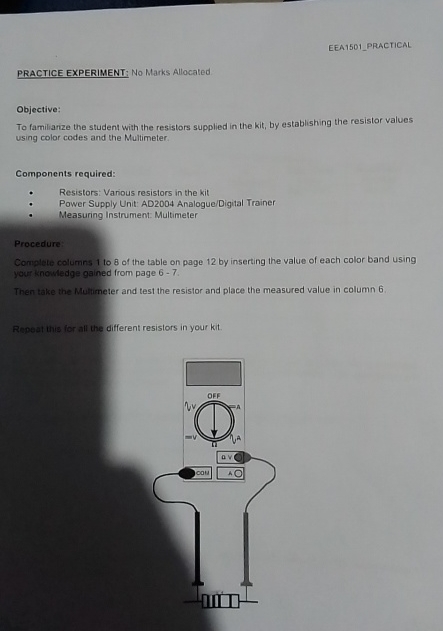

EEA1501_PRACTICAL PRACTICE EXPERIMENT: No Marks Allocated Objective: To familiarize the student with the resistors supplied in the kit, by establishing the resistor values using color codes and the Multimeter. Components required: Resistors: Various resistors in the kit Power Supply Unit: AD2004 Analogue/Digital Trainer Measuring Instrument: Multimeter Procedure: Complete columns 1 to 8 of the table on page 12 by inserting the value of each color band using your knowledge gained from page 6-7. Then take the Multimeter and test the resistor and place the measured value in column 6 . Repoat this for all the different resislors in your kit.
