(Solved): Exercise 6 Consider the signal x(t)=cos(\pi t)+2cos(4\pi t) The signal is sampled to obtain the sign ...



Exercise 6 Consider the signal

x(t)=cos(\pi t)+2cos(4\pi t)

The signal is sampled to obtain the signal

x[n]=x(nT)

with Fourier transform

x(e^(j\omega ))

. a) (5 pt) What is the minimum sampling frequency

\omega _(s)=(2\pi )/(T)

that can be used to avoid aliasing? In the following questions assume that the sampling frequency is

6\pi

b) (10 pt) Sketch the Fourier transform

x(e^(j\omega ))

of

x[n]

(or

x_(T)(\omega )

). c) (10 pt) The signal, sampled with sampling frequency is

\omega _(s)=6\pi

, is reconstructed with an ideal reconstruction filter with

H(j\omega )={(3,|\omega |<3\pi ),(0 otherwise ):}

Find an expression for the output

y(t)

of the filter.

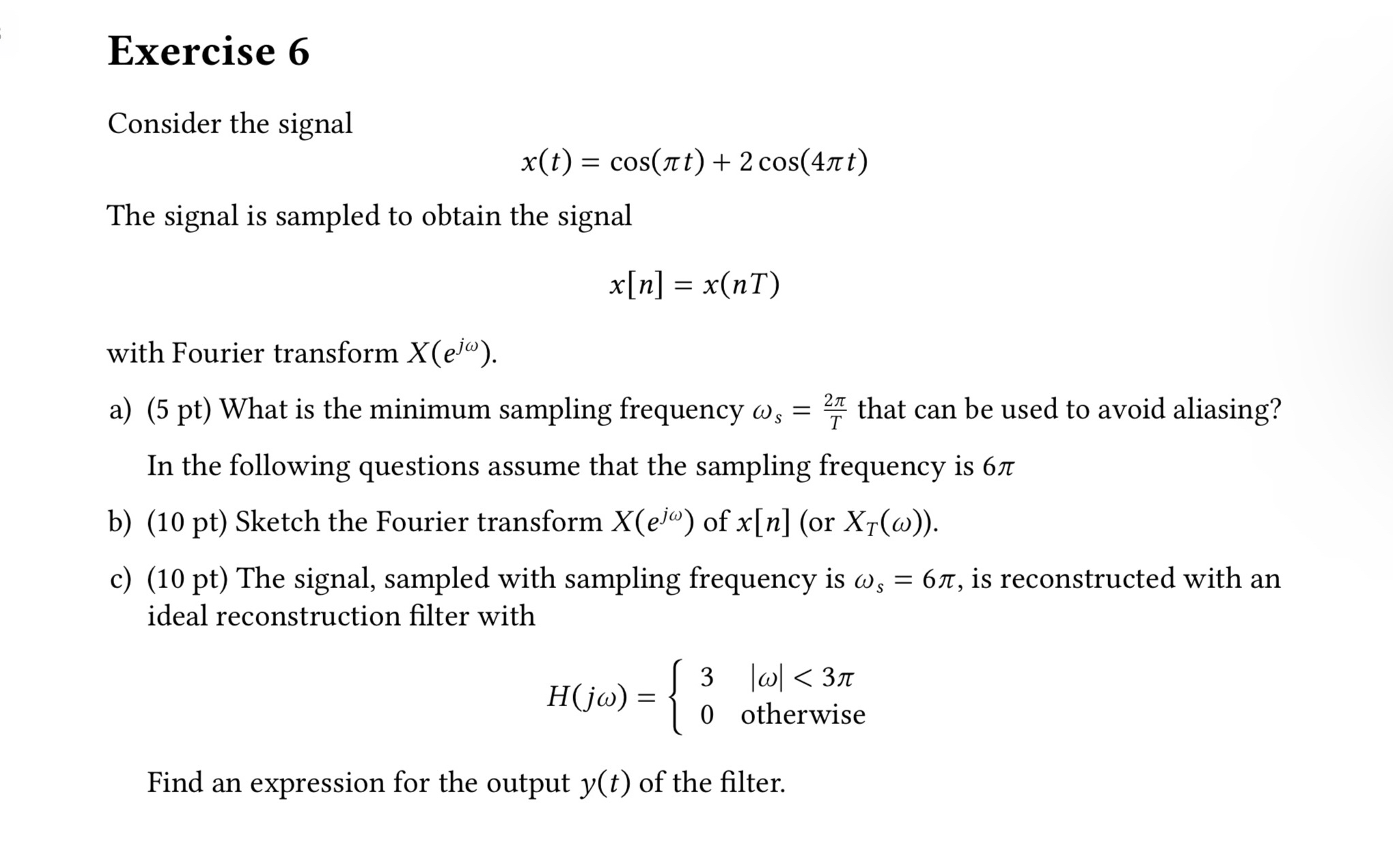

student submitted image, transcription available below
