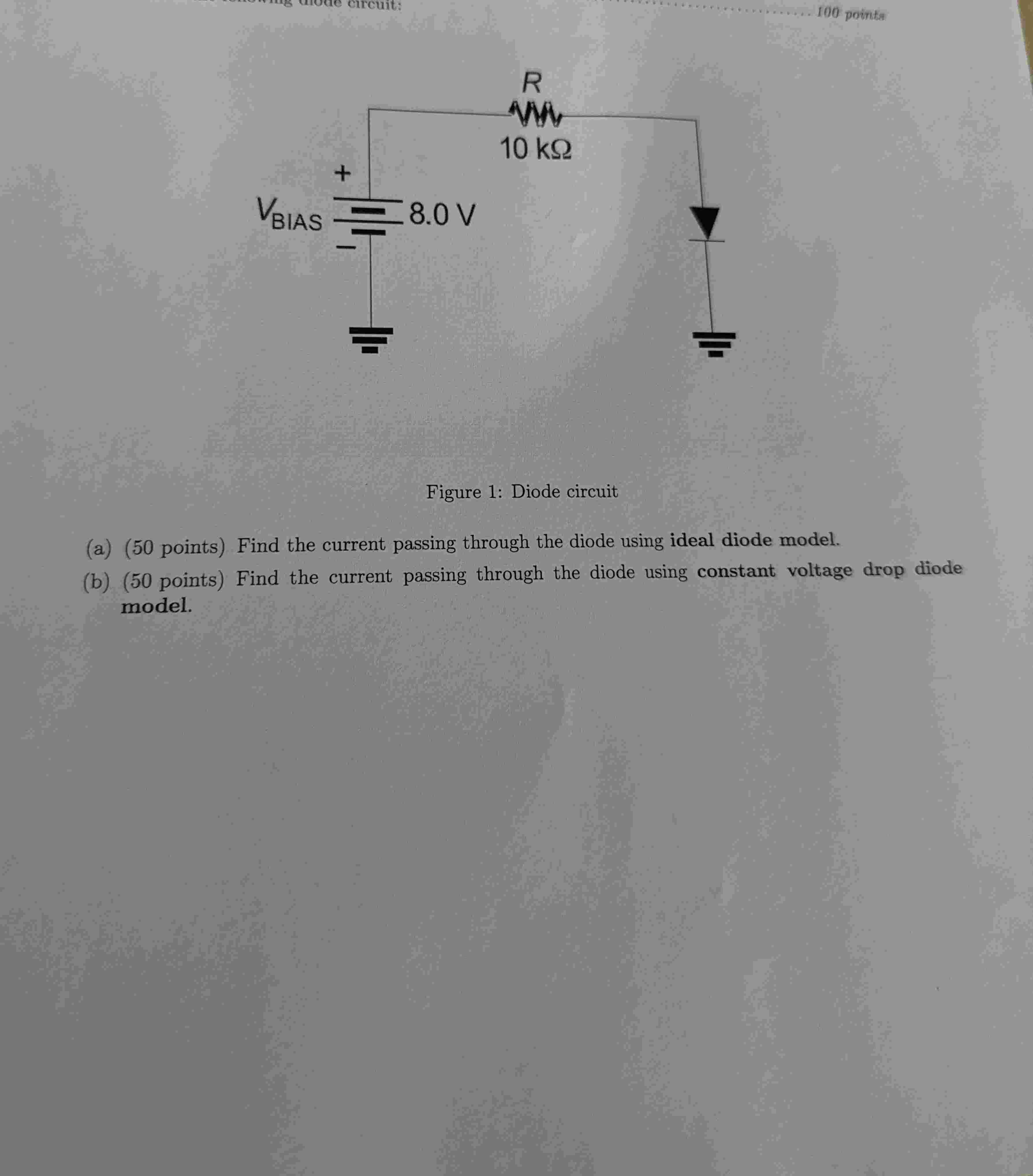

Figure 1: Diode circuit (a) (50 points) Find the current passing through the diode using ideal diode model. (b) (50 points) Find the current passing through the diode using constant voltage drop diode model.
