(Solved): Find all member forces in the composite truss as shown in the figure. (Specify whether the member is ...

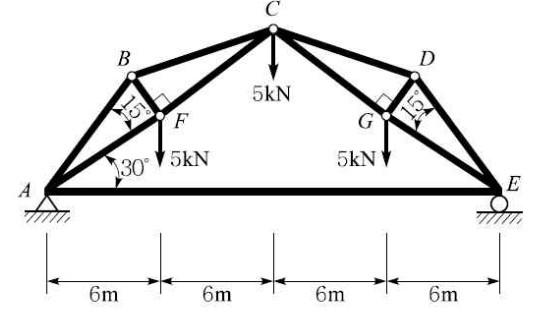

Find all member forces in the composite truss as shown in the figure. (Specify whether the member is tension or compression.)

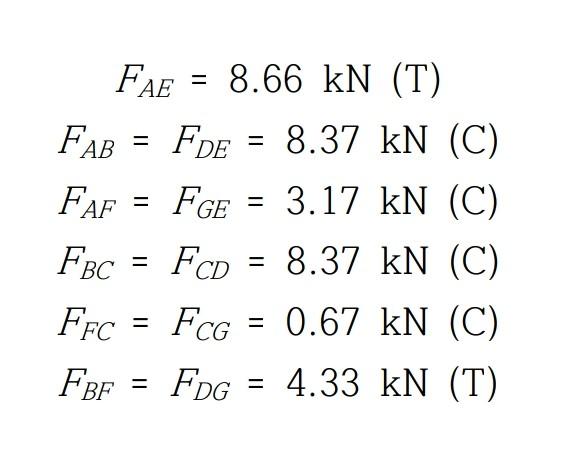

*answer :
B D 5kN 15 F 5kN 5KNV 530 ? E 6m 6m 6m 6m
= = FGE = FAE = 8.66 kN (T) ( FAB = FDE = 8.37 kN (C) FAF 3.17 kN (C) FBC FCD 8.37 kN (C) Ffc = FCG = 0.67 kN (C) FBF = FDG = 4.33 kN (T) = = = =
