Find the shear flow of the structure with the cross-section given in Figure 1 if the vertical force
V_(z)
is applied at
20cm
to the right of the stringers. Given
G=27GPa
, find the corresponding twist angle,
\theta
. Assume that the thin sheets are ineffective in bending. points)
uarrV_(z)

A_(1)=A_(2)=12cm^(2) t=0.2cm h=60cm

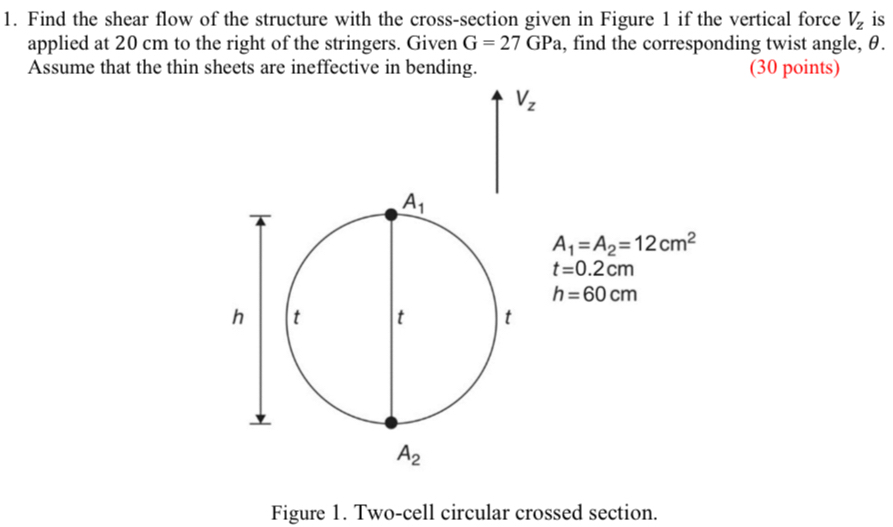

Figure 1. Two-cell circular crossed section.

Question

Find the shear flow of the structure with the cross-section given in Figure 1 if the vertical force

V_(z)

is applied at

20cm

to the right of the stringers. Given

G=27GPa

, find the corresponding twist angle,

\theta

. Assume that the thin sheets are ineffective in bending. points)

uarrV_(z)

A_(1)=A_(2)=12cm^(2)
t=0.2cm
h=60cm

Figure 1. Two-cell circular crossed section.
