(Solved): For each of the following circuits, find the Thevenin and Equivalent Circuit with respect to the d ...

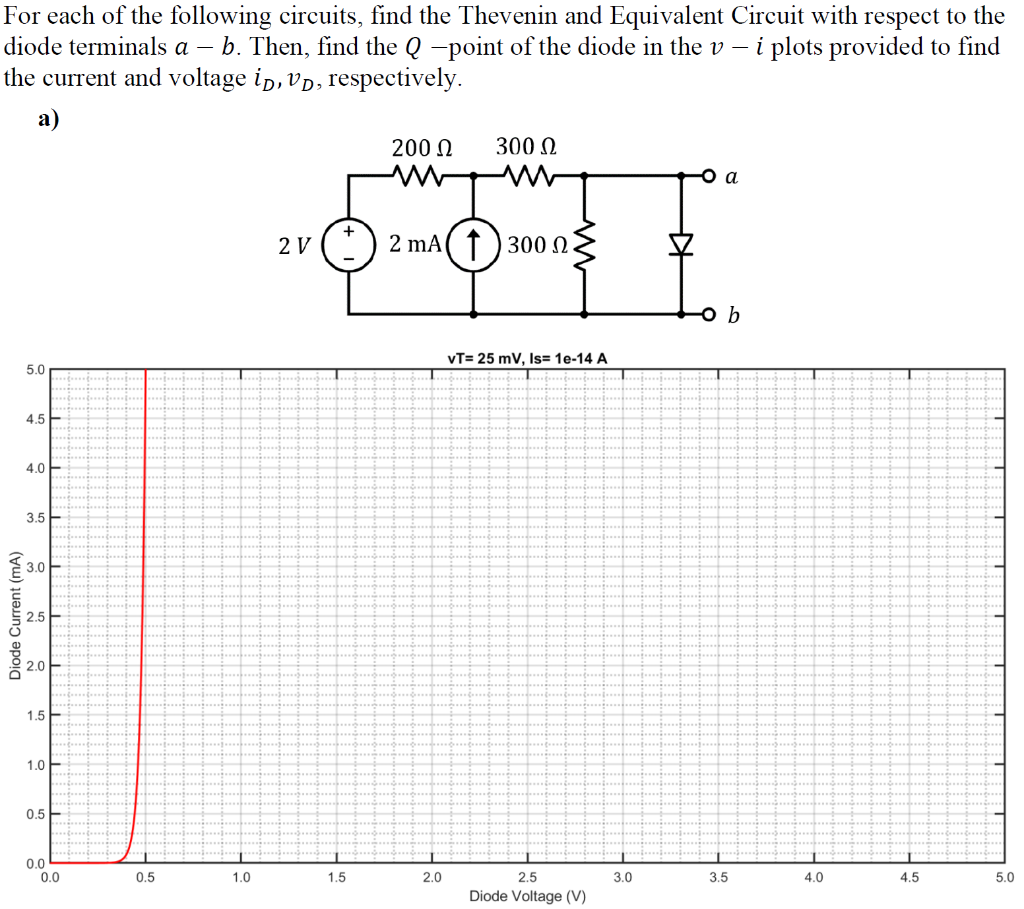

For each of the following circuits, find the Thevenin and Equivalent Circuit with respect to the diode terminals \( a-b \). Then, find the \( Q \)-point of the diode in the \( v-i \) plots provided to find the current and voltage \( i_{D}, v_{D} \), respectively. a)
