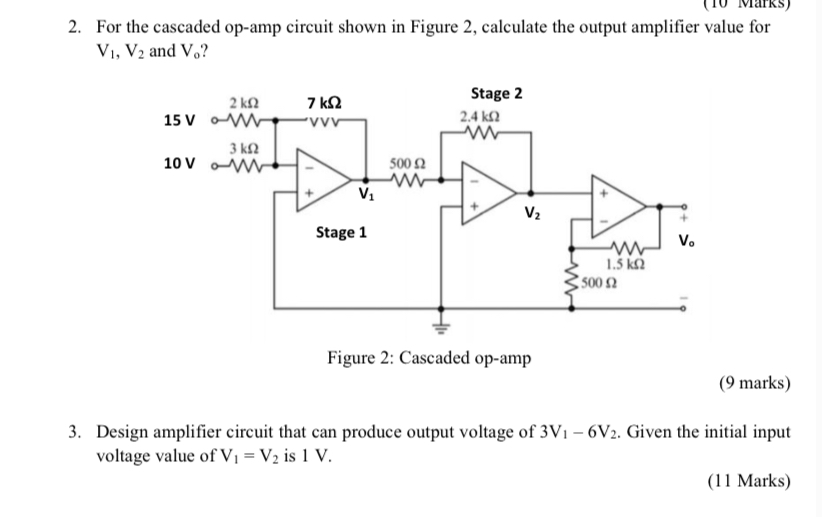

For the cascaded op-amp circuit shown in Figure 2, calculate the output amplifier value for
V_(1),V_(2)and
V_(o)? Figure 2: Cascaded op-amp (9 marks) 3. Design amplifier circuit that can produce output voltage of
3V_(1)-6V_(2). Given the initial input voltage value of
V_(1)=V_(2)is 1 V . (11 Marks)
