(Solved): For the common emitter amplifier circuit shown in Figure 12 Calculate: (i) The output voltage (ii) ...


student submitted image, transcription available below

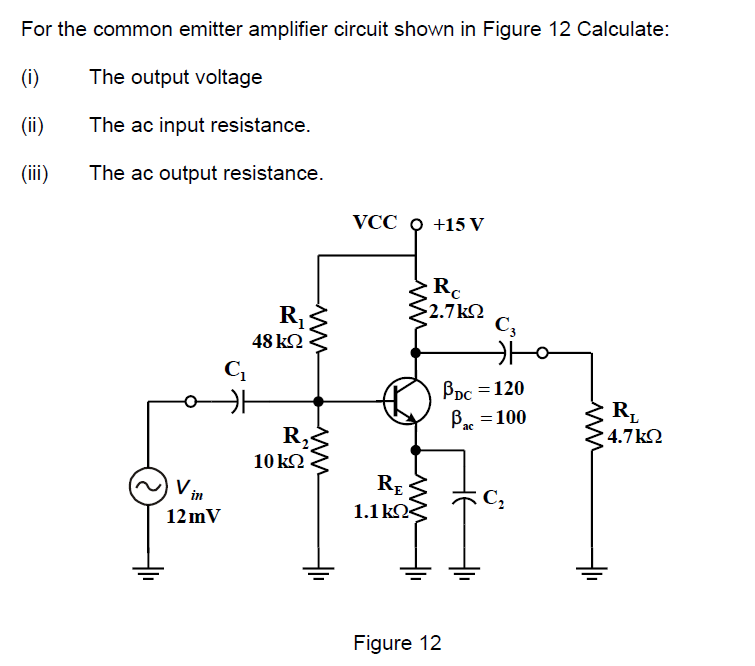

For the common emitter amplifier circuit shown in Figure 12 Calculate: (i) The output voltage (ii) The ac input resistance. (iii) The ac output resistance. Figure 12
