(Solved): For the figure, determine: a) The bending moment and shear force diagrams. b) For the section of th ...

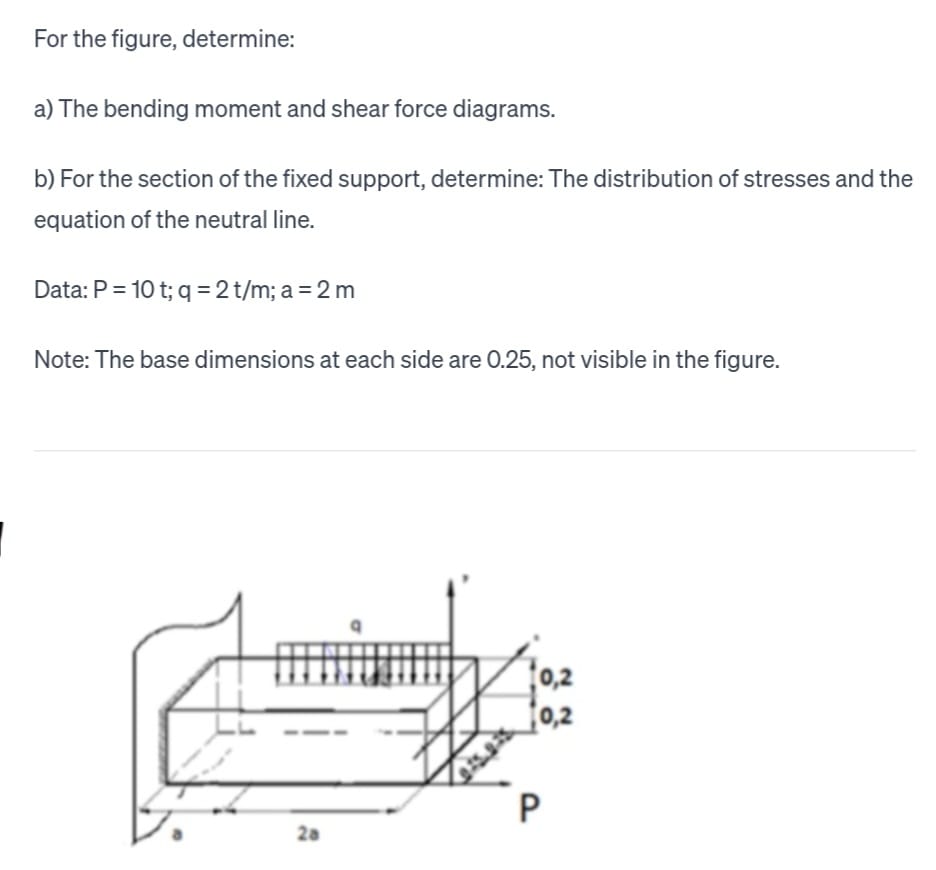

student submitted image, transcription available below
For the figure, determine: a) The bending moment and shear force diagrams. b) For the section of the fixed support, determine: The distribution of stresses and the equation of the neutral line. Data: Note: The base dimensions at each side are 0.25 , not visible in the figure.
