(Solved): For the following circuit: 6- For the following circuit: a. Find PR1,IT,IR1,VR1,VR2,V ...

For the following circuit:

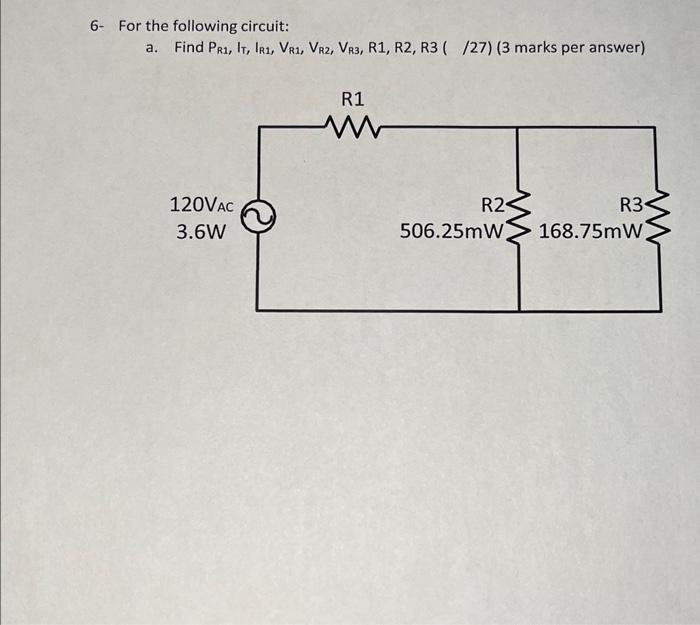

$6- For the following circuit: a. Find \( P_{R 1}, I_{T}, I_{R 1}, V_{R 1}, V_{R 2}, V_{R 3}, R 1, R 2, R 3(/ 27) \) (3 marks$

6- For the following circuit: a. Find

P_{R 1}, I_{T}, I_{R 1}, V_{R 1}, V_{R 2}, V_{R 3}, R 1, R 2, R 3 (/27)

(3 marks per answer)

We have an Answer from Expert

View Expert Answer

Expert Answer

The given values areVs = 120 V (ac)Ps = 3.6 WPr1 = 506.25 mWPr2 = 168.75 mWLaws used for sol
