(Solved): For the following truss, determine by method of sections the forces in members BD, BE, and CE. Assu ...

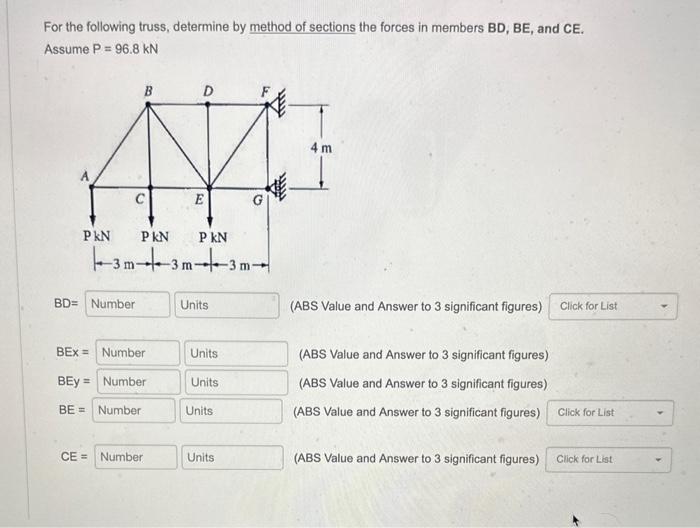

For the following truss, determine by method of sections the forces in members BD, BE, and CE. Assume \( P=96.8 \mathrm{kN} \) \( B D= \) (ABS Value and Answer to 3 significant figures) \begin{tabular}{l|c} \hline \( \mathrm{BEx}= \) & (ABS Value and Answer to 3 significant figures) \\ \( \mathrm{BEy}= \) & (ABS Value and Answer to 3 significant figures) \\ \( \mathrm{BE}= \) & (ABS Value and Answer to 3 significant figures) \end{tabular} \( \mathrm{CE}= \) (ABS Value and Answer to 3 significant figures)
Expert Answer
Given Data from the figure of Truss: P =96.8 kN To determine the member forces in BD, BE, and CE. Horizontal distance = 3 m Vertical distance = 4 m Us
