(Solved): For the limiter circuit shown below consider that the Zener diodes have V_(zo)=3.3V and r_(z)=50\Ome ...

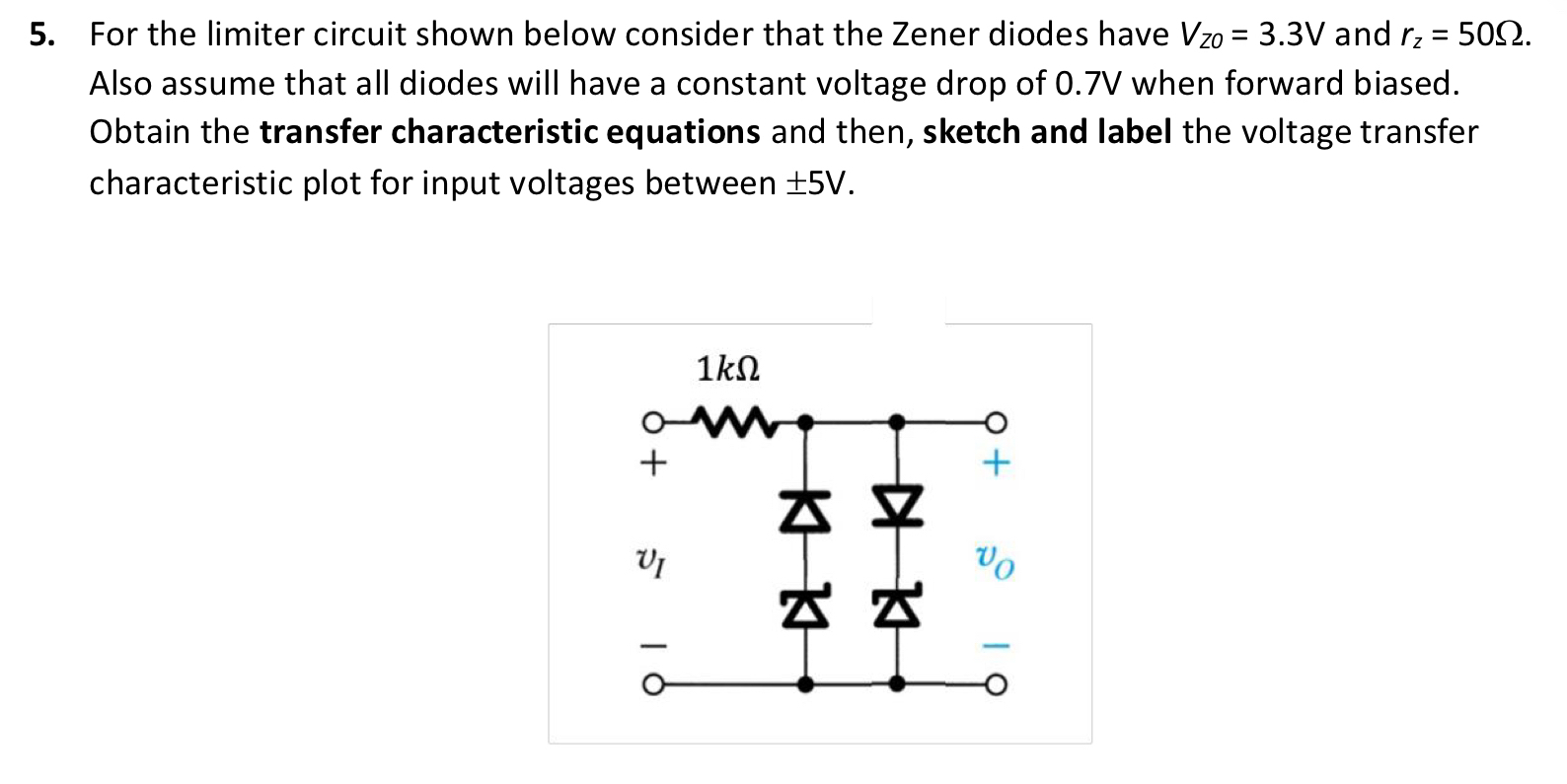

For the limiter circuit shown below consider that the Zener diodes have

and

. Also assume that all diodes will have a constant voltage drop of 0.7 V when forward biased. Obtain the transfer characteristic equations and then, sketch and label the voltage transfer characteristic plot for input voltages between

.
