(Solved): For the rigid frame shown in the figure to the right, determine: (a) the displacements and rotation ...

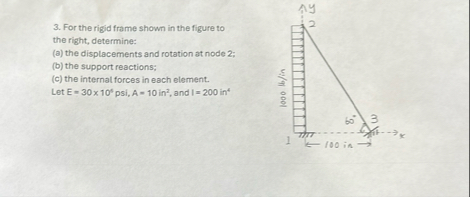

For the rigid frame shown in the figure to the right, determine: (a) the displacements and rotation at node 2; (b) the support reactions; (c) the internal forces in each element. Let
E=30\times 10^(5)\psi ,A=10in^(2), and
I=200in^(4)
