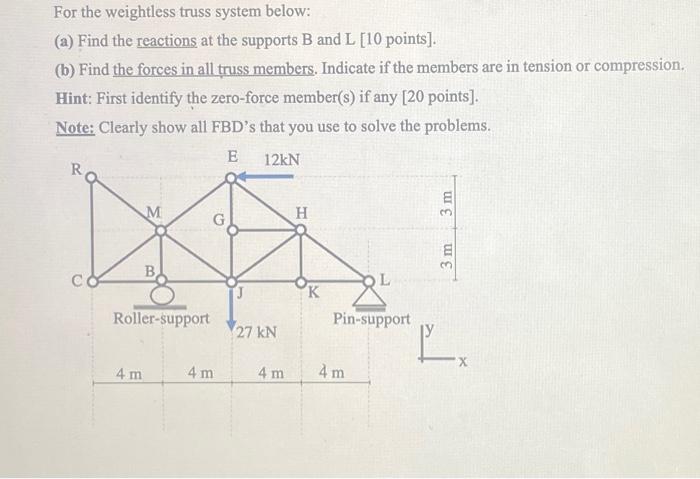

For the weightless truss system below: (a) Find the reactions at the supports B and L [10 points]. (b) Find the forces in all truss members. Indicate if the members are in tension or compression. Hint: First identify the zero-force member(s) if any [ 20 points]. Note: Clearly show all FBD's that you use to solve the problems.
