From Q1: the Net cross-section area of the plate in mm2 is ?
From Q1: the cross-section area of the bolt in mm2 is?
From Q1: the bearing area between the bolts and the plate in mm2 is ?
From Q1: the normal stress, in Mpa, in the net section area, of each plate is?
From Q1: the gross cross-section area of the plate in mm2 is?

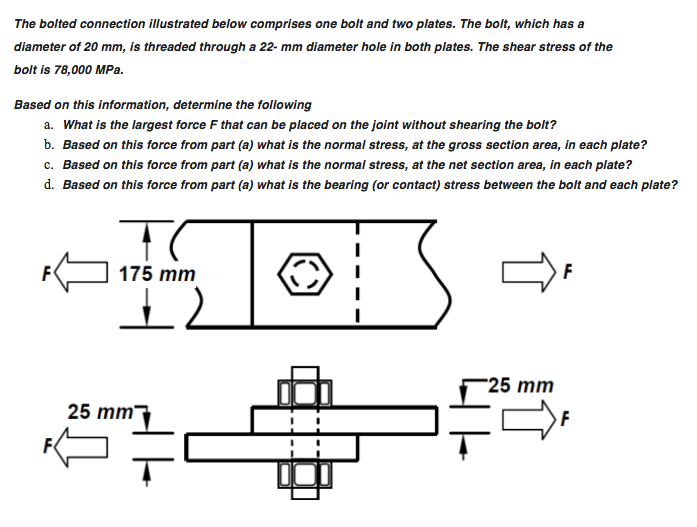

The bolted connection illustrated below comprises one bolt and two plates. The bolt, which has a diameter of \( 20 \mathrm{~mm} \), is threaded through a \( 22-\mathrm{mm} \) diameter hole in both plates. The shear stress of the bolt is \( 78,000 \mathrm{MPa} \). Based on this information, determine the following a. What is the largest force \( F \) that can be placed on the joint without shearing the bolt? b. Based on this force from part (a) what is the normal stress, at the gross section area, in each plate? c. Based on this force from part (a) what is the normal stress, at the net section area, in each plate? d. Based on this force from part (a) what is the bearing (or contact) stress between the bolt and each plate
