(Solved): From the symmetry of the structure, we know that the slope of the beam is zero at the middle of span ...

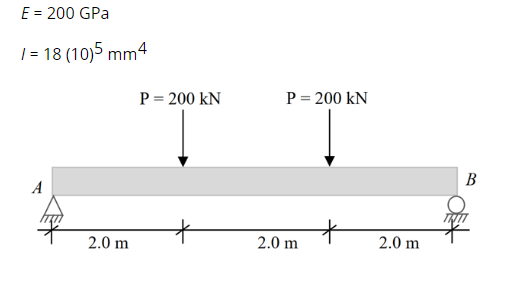

From the symmetry of the structure, we know that the slope of
the beam is zero at the middle of span. Using the method
of moment-area, calculate the slope at
Point B and the maximum displacement of the
beam. Report the slope and displacement
in degrees and mm, respectively
E = 200 GPa /= 18 (10)5 mm4 A 2.0 m P = 200 KN P = 200 KN 2.0 m 2.0 m B
