(Solved): Generate a plot of Amplitude (in decibels) vs frequency, and phase (degrees) vs frequency from the c ...

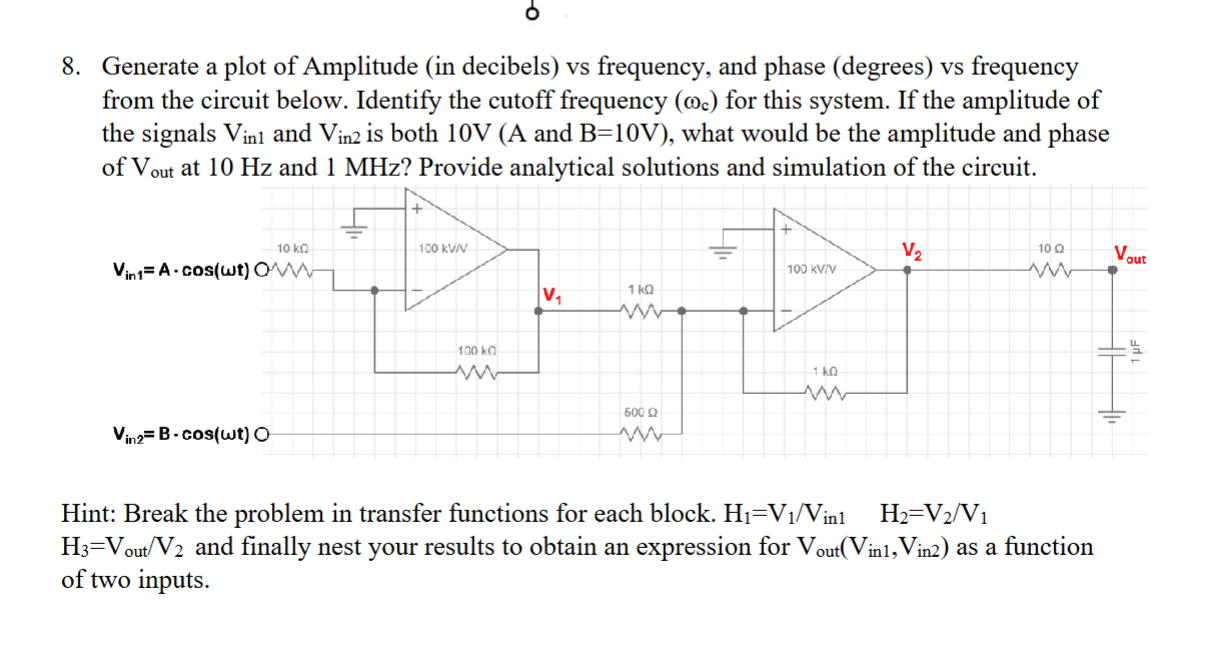

Generate a plot of Amplitude (in decibels) vs frequency, and phase (degrees) vs frequency from the circuit below. Identify the cutoff frequency (\omega _(c)) for this system. If the amplitude of the signals V_(in1 ) and V_(in2 ) is both and B=10V, what would be the amplitude and phase of V_(out ) at 10 Hz and 1 MHz ? Provide analytical solutions and simulation of the circuit. Hint: Break the problem in transfer functions for each block. H_(1)=(V_(1))/(V_(in1 )),H_(2)=(V_(2))/(V_(1)) H_(3)=(V_(out ))/(V_(2)) and finally nest your results to obtain an expression for V_(out )(V_(in1 ),V_(in2 )) as a function of two inputs.
