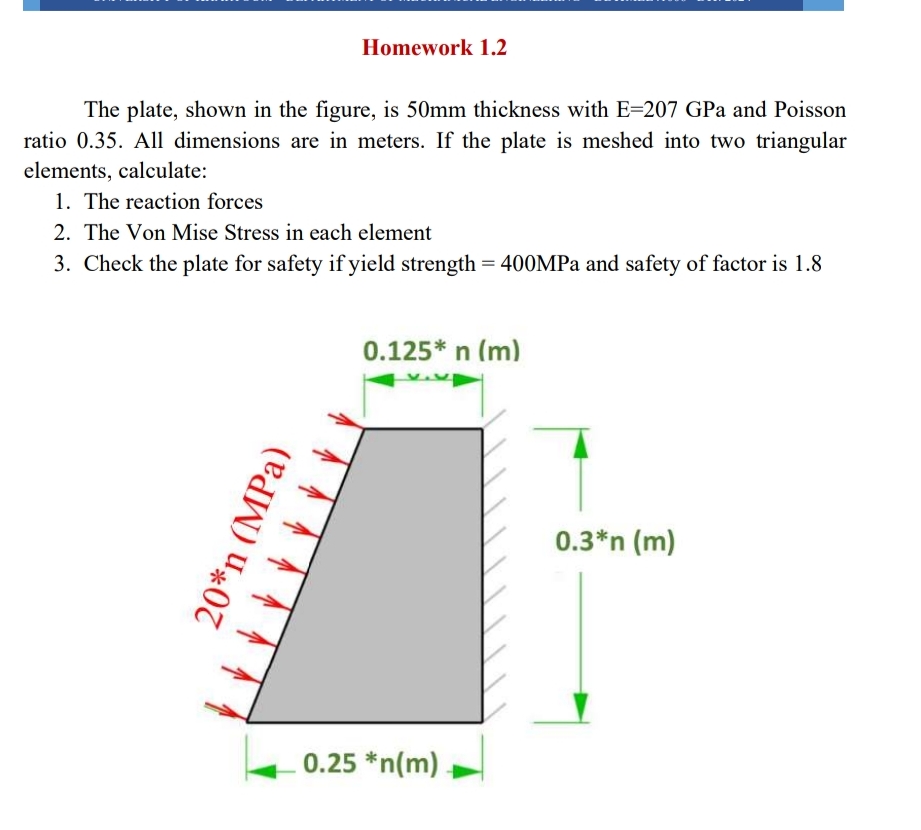

Homework 1.2 The plate, shown in the figure, is 50 mm thickness with
E=207GPa
and Poisson ratio 0.35 . All dimensions are in meters. If the plate is meshed into two triangular elements, calculate: The reaction forces The Von Mise Stress in each element Check the plate for safety if yield strength
=400MPa
and safety of factor is 1.8 n=1107

Question

Homework 1.2 The plate, shown in the figure, is 50 mm thickness with

E=207GPa

and Poisson ratio 0.35 . All dimensions are in meters. If the plate is meshed into two triangular elements, calculate: The reaction forces The Von Mise Stress in each element Check the plate for safety if yield strength

=400MPa

and safety of factor is 1.8 n=1107

Accepted Answer
