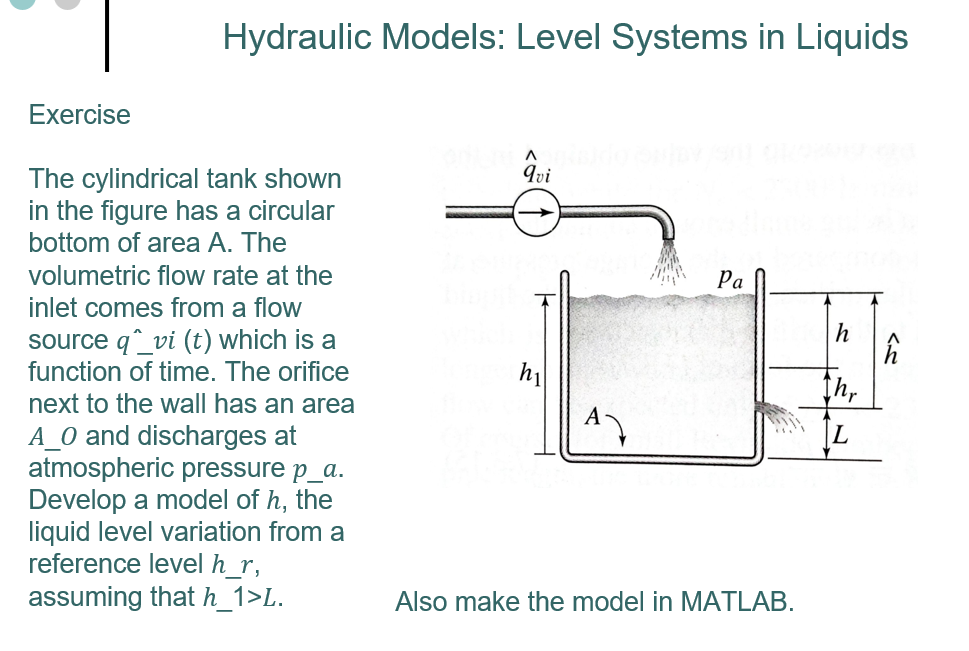

Hydraulic Models: Level Systems in Liquids Exercise The cylindrical tank shown in the figure has a circular bottom of area A. The volumetric flow rate at the inlet comes from a flow source \( q^{\wedge} \_v i(t) \) which is a function of time. The orifice next to the wall has an area A_O and discharges at atmospheric pressure \( p \_a \). Develop a model of \( h \), the liquid level variation from a reference level \( h \_r \), assuming that \( h \_1>L \). Also make the model in MATLAB.
