(Solved): In the crank and slotted lever type quick return motion mechanism shown in Fig. the crank AB rotates ...

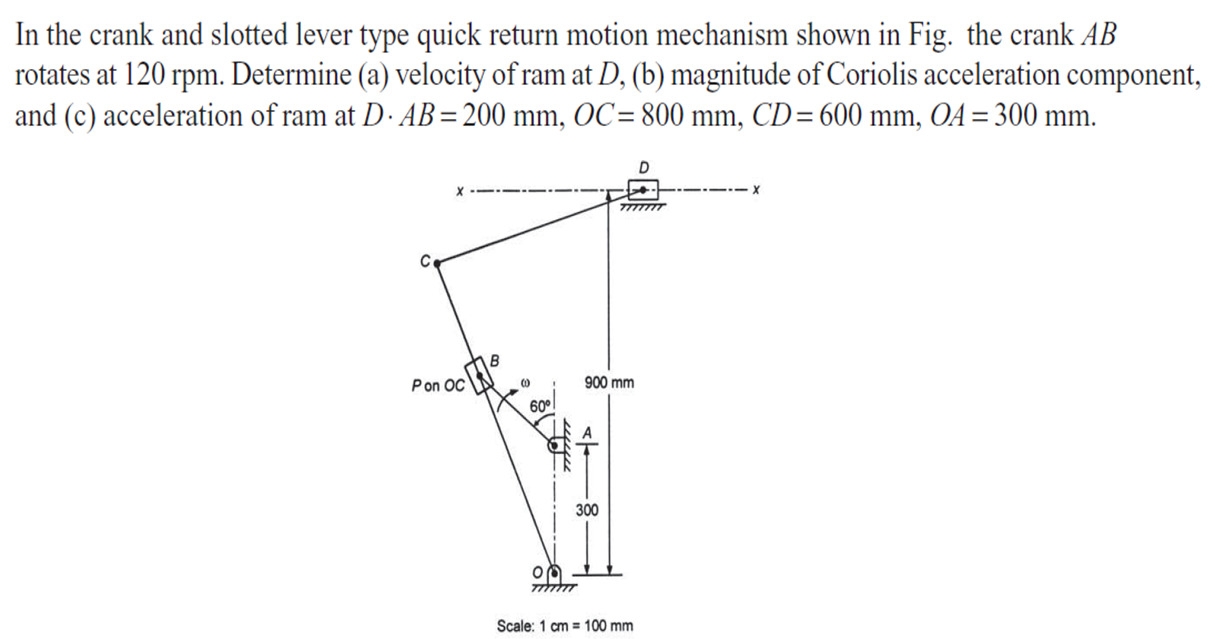

In the crank and slotted lever type quick return motion mechanism shown in Fig. the crank
ABrotates at 120 rpm . Determine (a) velocity of ram at
D, (b) magnitude of Coriolis acceleration component, and (c) acceleration of ram at
D*AB=200mm,OC=800mm,CD=600mm,OA=300mm.
