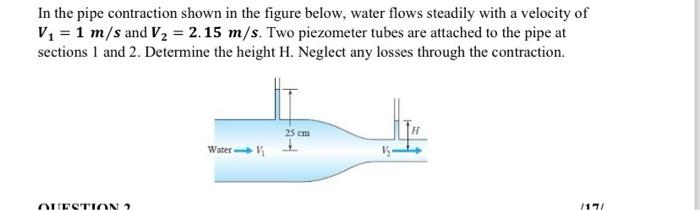

In the pipe contraction shown in the figure below, water flows steadily with a velocity of V₁ = 1 m/s and V₂ = 2.15 m/s. Two piezometer tubes are attached to the pipe at sections 1 and 2. Determine the height H. Neglect any losses through the contraction. QUESTION 2 Water V 25 cm

Question

student submitted image, transcription available below

In the pipe contraction shown in the figure below, water flows steadily with a velocity of

V_{1} = 1 m / s

and

V_{2} = 2.15 m / s

. Two piezometer tubes are attached to the pipe at sections 1 and 2. Determine the height

H

. Neglect any losses through the contraction.
