(Solved): In the position shown, the slotted plate B is rotating about pin A with the angular velocity omega ...



student submitted image, transcription available belowstudent submitted image, transcription available belowstudent submitted image, transcription available below

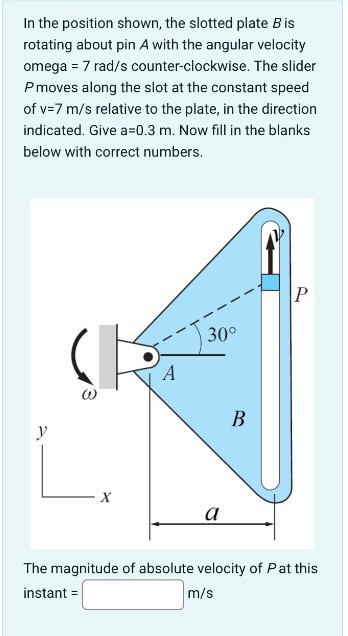

In the position shown, the slotted plate is rotating about pin with the angular velocity omega counter-clockwise. The slider moves along the slot at the constant speed of relative to the plate, in the direction indicated. Give . Now fill in the blanks below with correct numbers. The magnitude of absolute velocity of at this instant Water entering the curved pipe at is discharged at . The pipe is rotating about at the constant angular velocity omega , and the water has a constant speed of relative to the pipe. Now fill in the blanks below with correct numbers. The magnitude of acceleration of the water just before it is discharged at The disk is rolling without slipping on the horizontal ground with the constant counterclockwise angular velocity omega . The pin , attached to the rim of the disk, engages the slot in the rotating arm . Give . Now fill in the blanks below with correct numbers. The magnitude of angular acceleration of when the system is in the position shown =
