Question

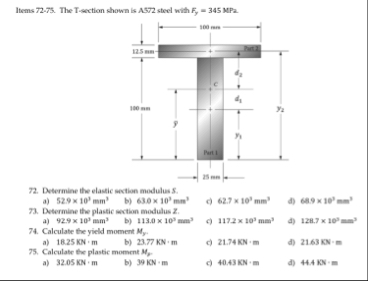

Items 72-75. The T-section shown is AST2 steel with

F_(y)=345MPz

. 72. Determine the elastic section modulus 8 . a)

52.9\times 10^(3)mm^(3)

b)

63.0\times 10^(3)mm^(3)

c)

62.7\times 10^(3)mm^(3)

d)

68.9\times 10^(3)mm^(3)

73. Determine the plastic section modulus 2 . a)

92.9\times 10^(3)mm^(3)

b)

113.0\times 10^(9)mm^(3)

c)

117.2\times 10^(3)mm^(3)

d)

12B.7\times 10^(3)mm^(3)

74. Calculate the yield moment

M_(y)

. a)

18.25KN*m

b)

23.77KN*m

c)

21.74KN*m

d)

21.63KN*m

75. Calculate the plastic moment

M_(p)

. a)

32.05KN*m

b)

39KN*m

c)

40.43KN*m

d)

44.4KN*m
