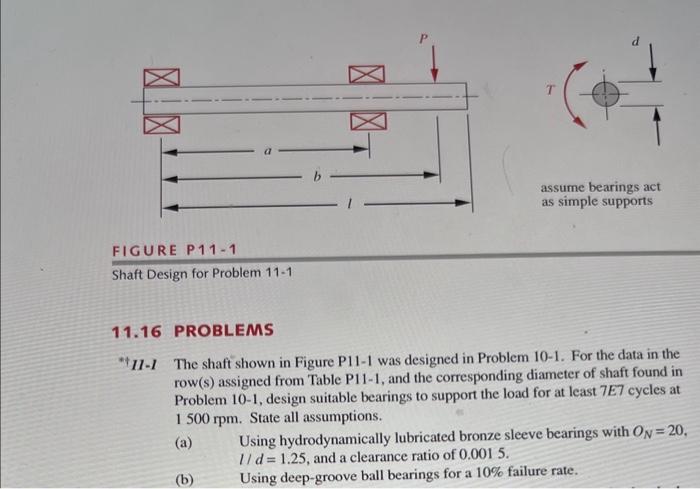

FIGURE P11-1 Shaft Design for Problem 11-1 11.16 PROBLEMS * 11-1 The shaft shown in Figure P11-1 was designed in Problem 10-1. For the data in the row(s) assigned from Table P11-1, and the corresponding diameter of shaft found in Problem 10-1, design suitable bearings to support the load for at least \( 7 E 7 \) cycles at \( 1500 \mathrm{rpm} \). State all assumptions. (a) Using hydrodynamically lubricated bronze sleeve bearings with \( O_{N}=20 \), \( 1 / d=1.25 \), and a clearance ratio of \( 0.0015 \). (b) Using deep-groove ball bearings for a \( 10 \% \) failure rate.
