(Solved): make a reflection on effect of the number of degrees of freedom of the given mechanical network with ...
make a reflection on effect of the number of degrees of freedom of the given mechanical network with the complexity of the differential equations

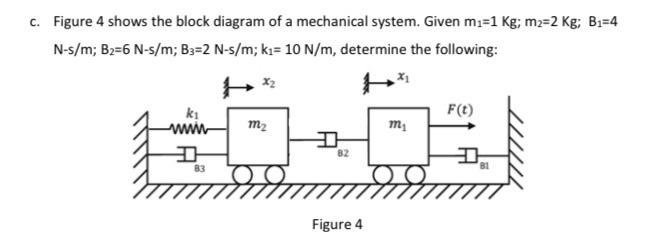

C. Figure 4 shows the block diagram of a mechanical system. Given m:=1 Kg; m2=2 Kg; B1=4 N-s/m; B2=6 N-s/m; B3=2 N-s/m; k?= 10 N/m, determine the following: F(t) m2 m 82 1 B3 Figure 4
