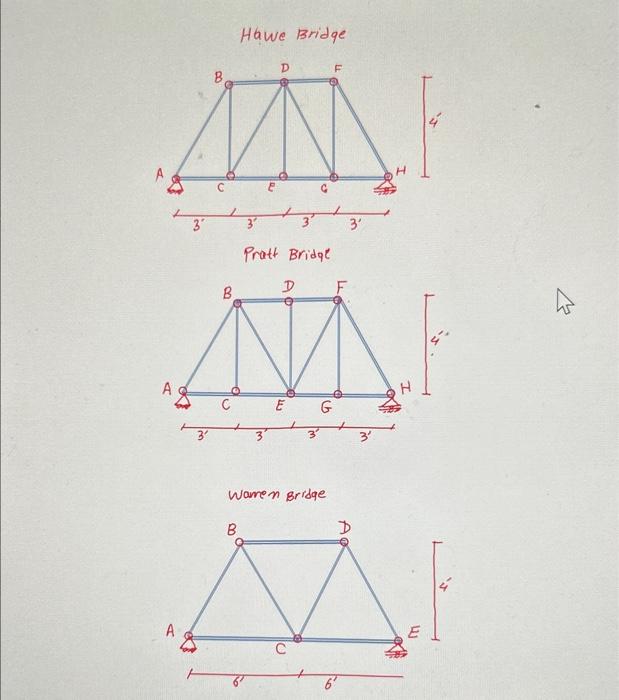

MECHANIC STATICS PLEASE HELPPPPP Apply the seperate charges of 850 at joint C, joint B and joint G in the Hawe Bridge and Pratt Bridge. On the Warren Bridge, just apply the charge 850 at joint C. Hace to find (in each bridge) identify and calculate the Zero Force member, calculate the reacctions and identify if it is in compression or tension. goin

Question

MECHANIC STATICS

PLEASE HELPPPPP Apply the seperate charges of 850 at joint C, joint B and joint G in the Hawe Bridge and Pratt Bridge. On the Warren Bridge, just apply the charge 850 at joint C. Hace to find (in each bridge) identify and calculate the Zero Force member, calculate the reacctions and identify if it is in compression or tension. going to provide examples on how to make it.

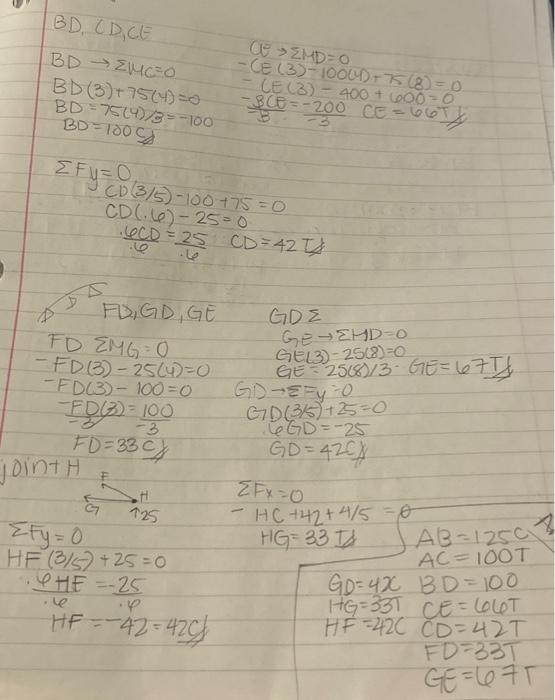

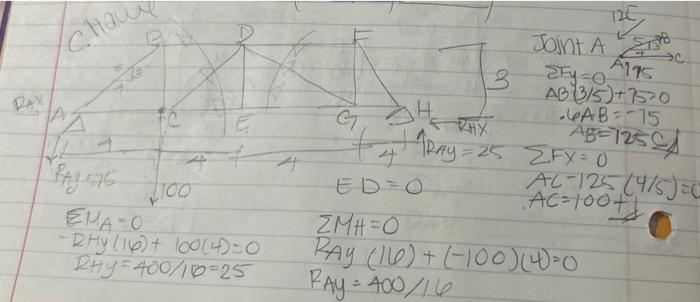

$\( \begin{array}{l}\begin{array}{lll}A y=75 \\ \sum_{M} M_{A}=0 & E D=0 & A C-125(4 / 5)=0 \\ D C=100+j\end{array} \\ R+y(16)$

$\( \begin{array}{l}\begin{array}{l}B D=100 \mathrm{C} \\ \sum F y=0 \\ C D(3 / 5)-100+75=0\end{array} \\ \begin{array}{l}C D($
