(Solved): n=5 Problem 3 Answer the questions based on the circuit shown below. 1 W 40 mA 1 Ix + V 2 ...
n=5

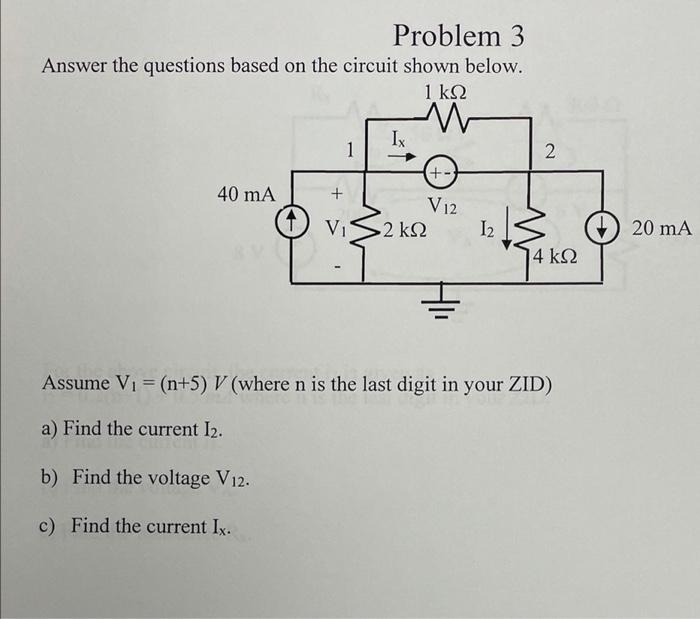

Problem 3 Answer the questions based on the circuit shown below. 1 ?? W 40 mA 1 Ix + V? ·2 ?? +- V12 12 2 4 ?? Assume V? = (n+5) V (where n is the last digit in your ZID) a) Find the current I?. b) Find the voltage V12. c) Find the current Ix. 20 mA
