(Solved):   B. Redraw the relevant part of the class model, adding a formal constraint to specify that a ...





funder
1
0..1
Department
1
0..1
manager
1
manager Employee
1
1
Project
Assignment
*

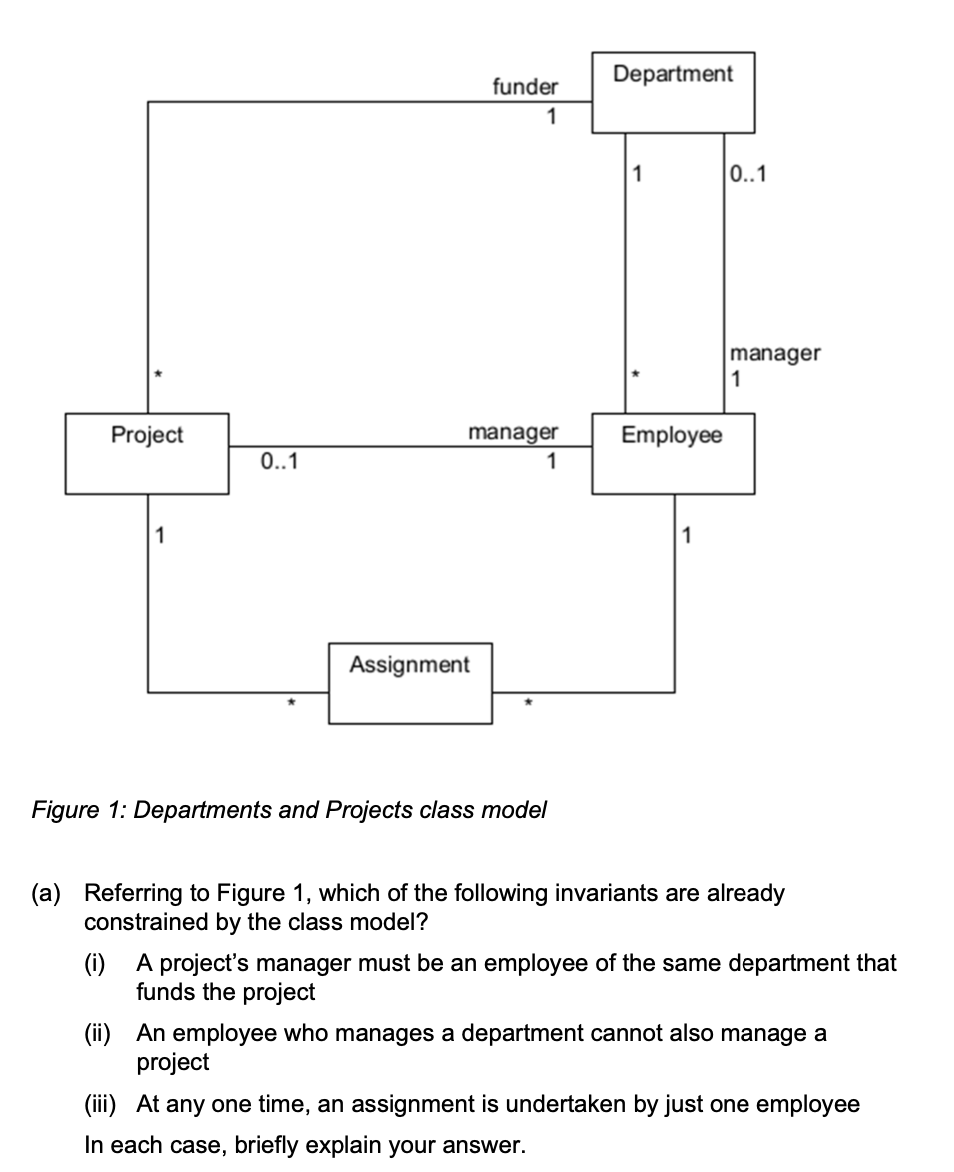

Figure 1: Departments and Projects class

B. Redraw the relevant part of the class model, adding a formal constraint to specify that a manager of a department must be an employee of the same department (you don’t have to redraw the whole diagram).

funder 1 0..1 Department 1 0..1 manager 1 manager Employee 1 1 Project Assignment * Figure 1: Departments and Projects class model (a) Referring to Figure 1, which of the following invariants are already constrained by the class model? (i) A project's manager must be an employee of the same department that funds the project (ii) An employee who manages a department cannot also manage a project (iii) At any one time, an assignment is undertaken by just one employee In each case, briefly explain your answer.
