(Solved): Full working out please (Question1) Figure 1 \[ \mathrm{B}_{\mathrm{dc}}=100 \] A. Calcul ...

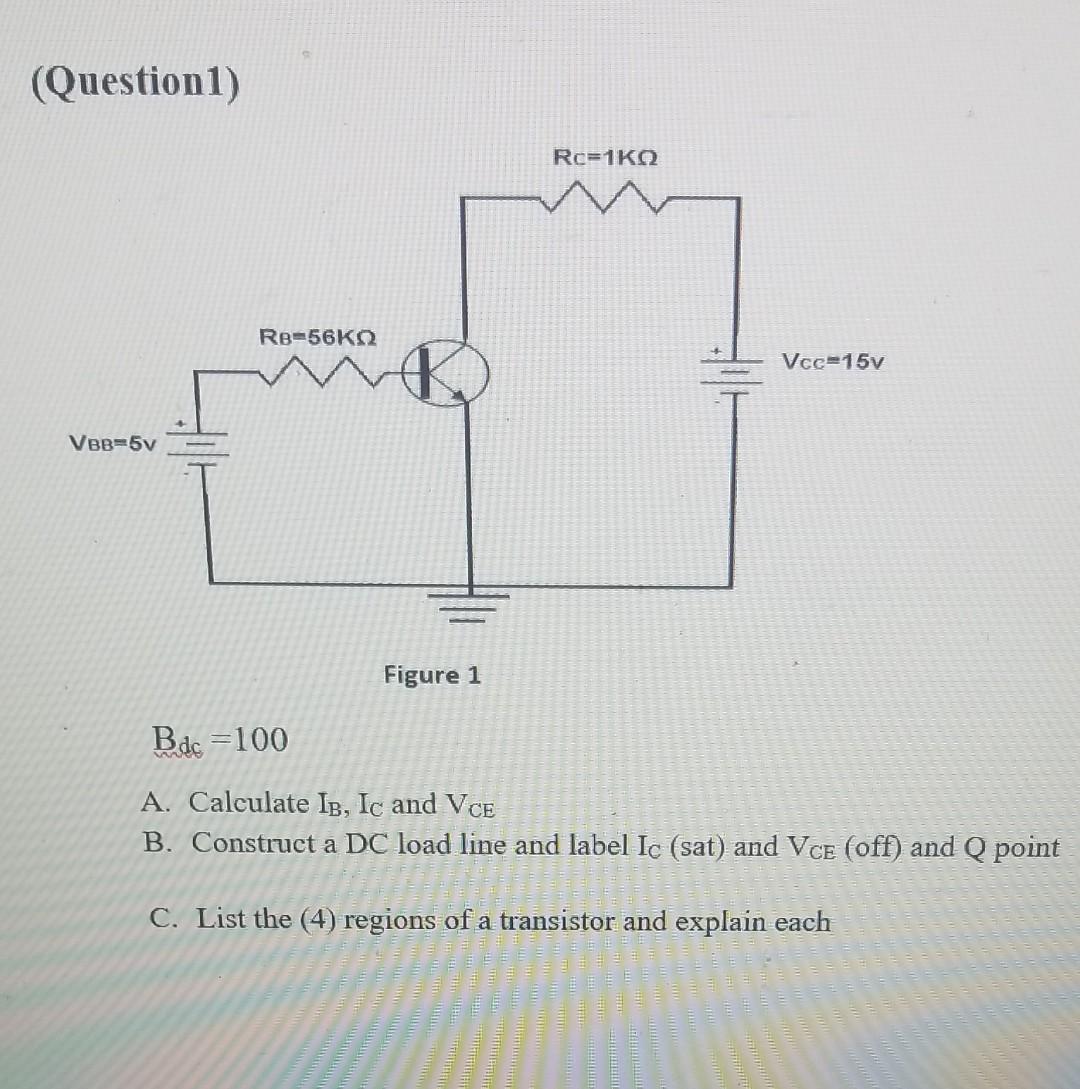

![(Question1)
Figure 1
\[
\mathrm{B}_{\mathrm{dc}}=100
\]
A. Calculate \( \mathrm{I}_{\mathrm{B}}, \mathrm{I}_{\mathrm{C}} \) a](https://media.cheggcdn.com/study/f19/f193135c-87fa-4f3a-baff-b71bc8c62ef1/image.jpg)
Full working out please
(Question1) Figure 1 \[ \mathrm{B}_{\mathrm{dc}}=100 \] A. Calculate \( \mathrm{I}_{\mathrm{B}}, \mathrm{I}_{\mathrm{C}} \) and \( \mathrm{V}_{\mathrm{CE}} \) B. Construct a \( \mathrm{DC} \) load line and label \( \mathrm{I}_{\mathrm{C}} \) (sat) and \( \mathrm{V}_{\mathrm{CE}} \) (off) and \( Q \) point C. List the (4) regions of a transistor and explain each
