Question

Wed 07 13/2022 4:13 AM

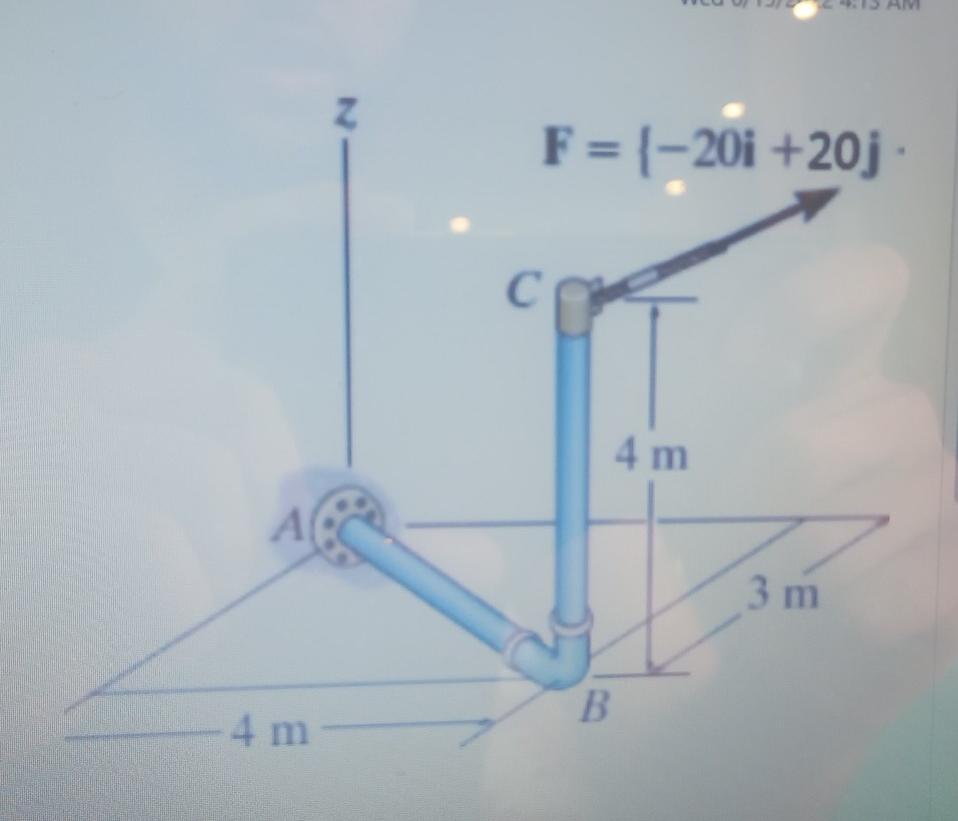

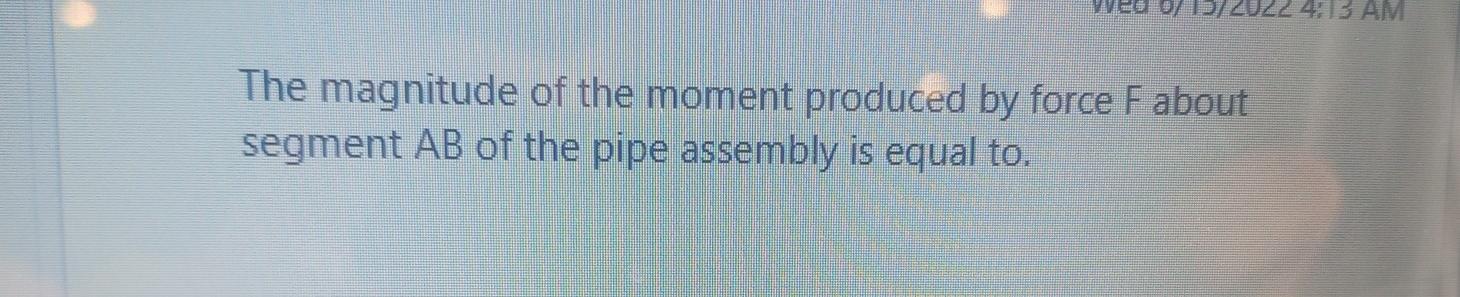

The magnitude of the moment produced by force F about
segment AB of the pipe assembly is equal to.

A
-4 m-
F = {-20i +20j.
C
4 m
B
3 m

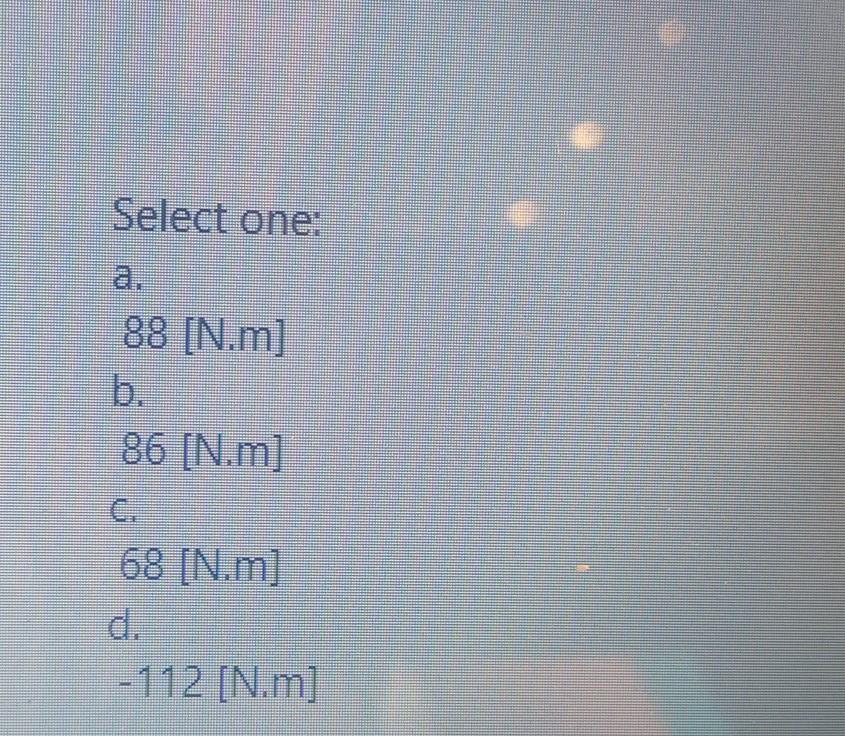

Select one:
88 [N.m]
b.
86 [N.m]
68 [N.m]
-112 [N.m]
