(Solved):     Question 8-SFD \& BMD - Cantilever Beam (Point) i) Draw the Free-Body Diagram \& ...

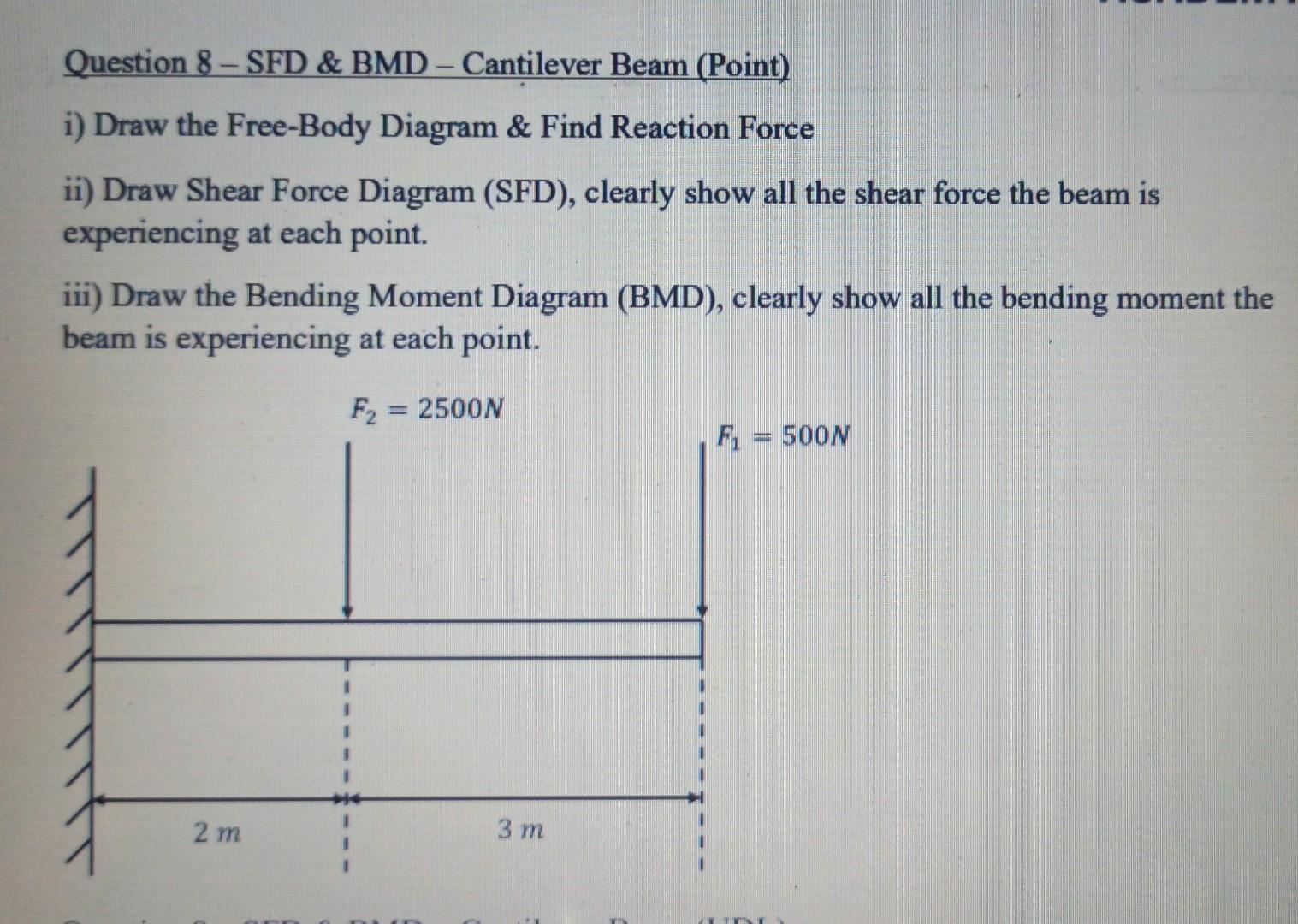

Question 8-SFD \& BMD - Cantilever Beam (Point) i) Draw the Free-Body Diagram \& Find Reaction Force ii) Draw Shear Force Diagram (SFD), clearly show all the shear force the beam is experiencing at each point. iii) Draw the Bending Moment Diagram (BMD), clearly show all the bending moment the beam is experiencing at each point. i) Draw the Free-Body Diagram \& Find Reaction Force ii) Draw Shear Force Diagram (SFD), clearly show all the shear force the beam is experiencing at each point. iii) Draw the Bending Moment Diagram (BMD), clearly show all the bending moment the beam is experiencing at each point.
