(Solved):   Please use the force method to draw the normal force diagram, shear force diagram and bend ...

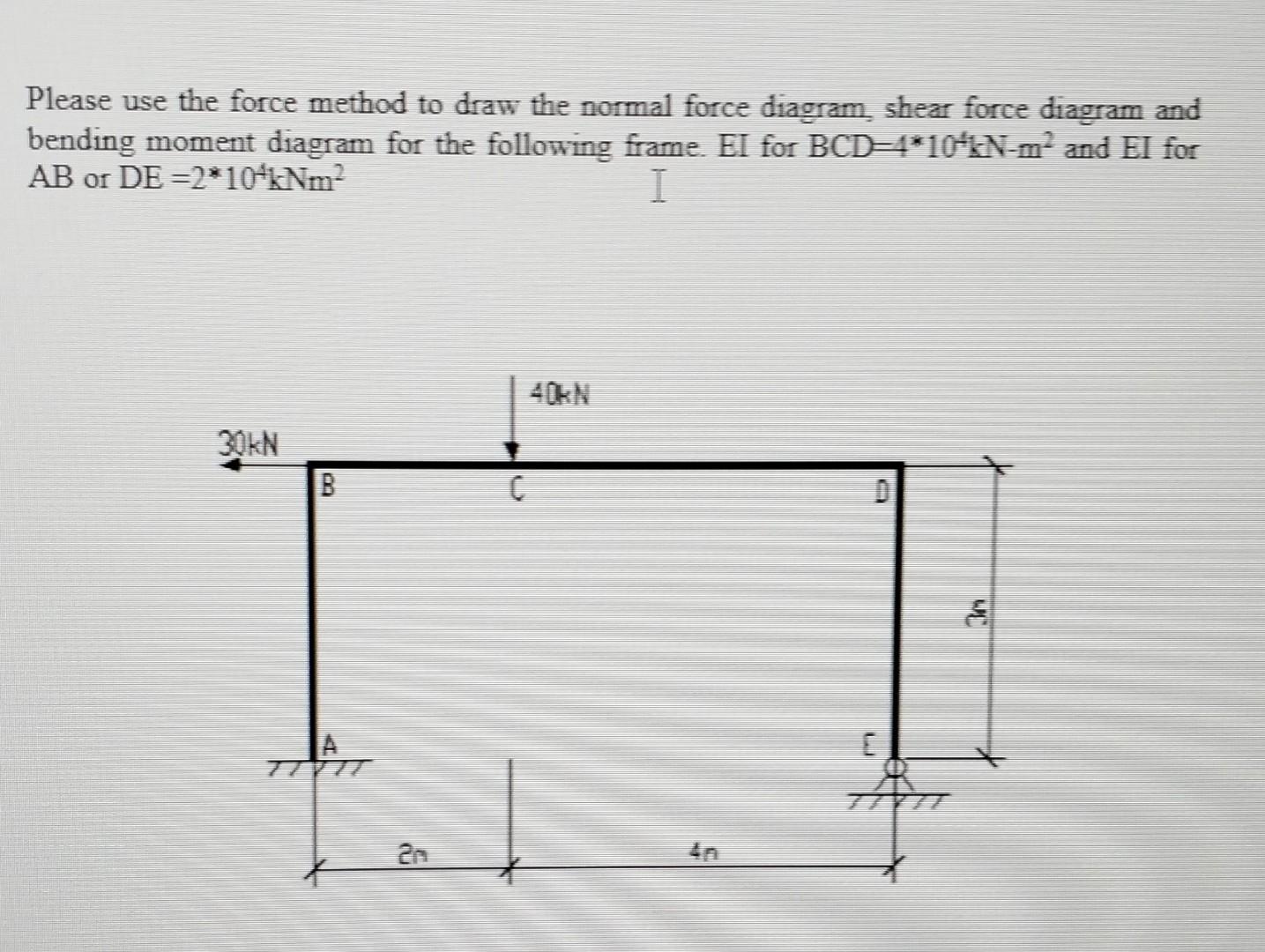

Please use the force method to draw the normal force diagram, shear force diagram and bending moment diagram for the following frame. \( \mathrm{EI} \) for \( \mathrm{BCD}=4^{*} 10^{4} \mathrm{kN}-\mathrm{m}^{2} \) and \( \mathrm{EI} \) for \( \mathrm{AB} \) or \( \mathrm{DE}=2^{*} 10^{4} k \mathrm{Nm}^{2} \)
