(Solved):   Q.8) The figure below shows the signal flow diagram of a discrete-time system. Obtain the ...

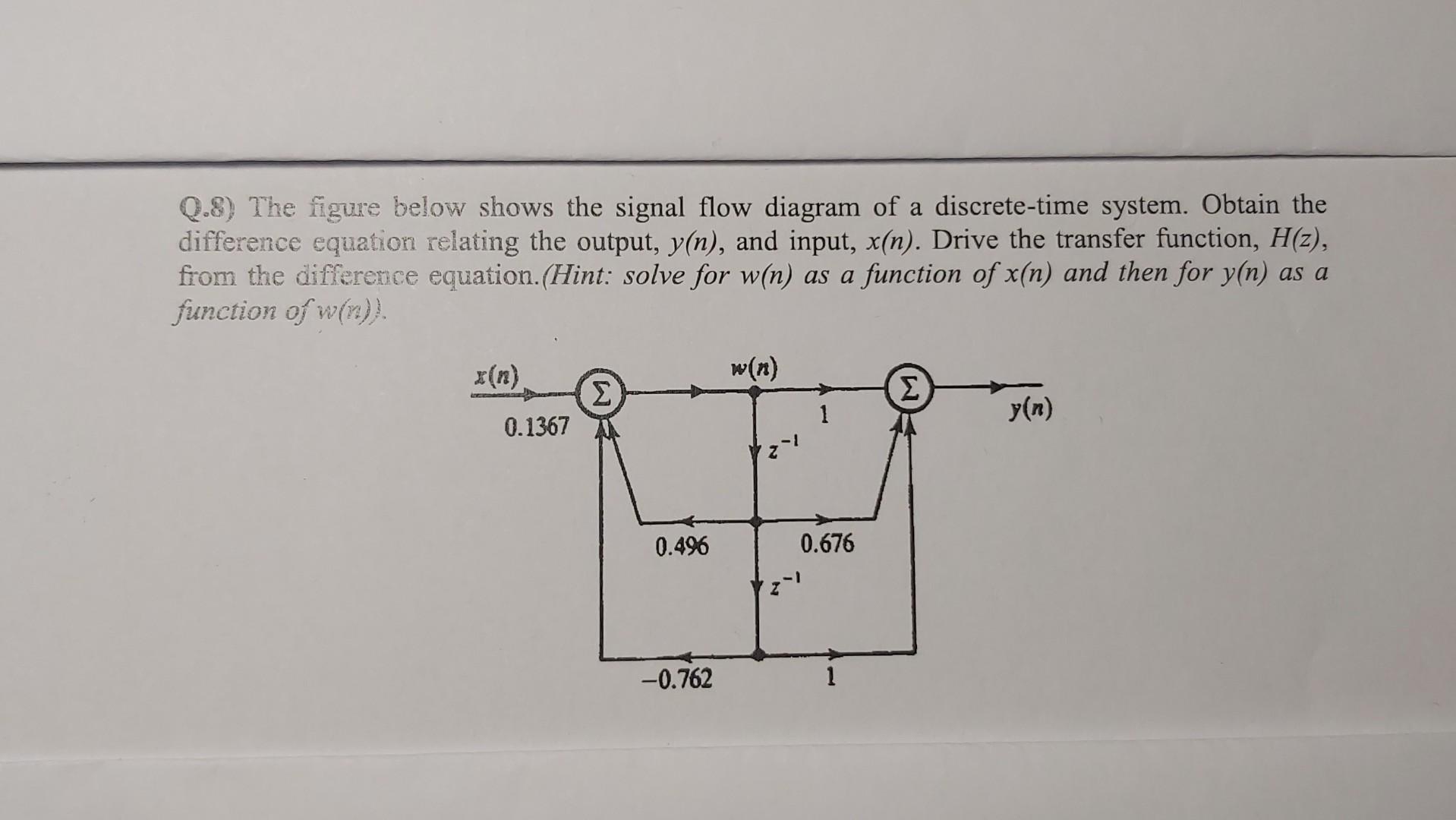

Q.8) The figure below shows the signal flow diagram of a discrete-time system. Obtain the difference equation relating the output, \( y(n) \), and input, \( x(n) \). Drive the transfer function, \( H(z) \), from the difference equation.(Hint: solve for \( w(n) \) as a function of \( x(n) \) and then for \( y(n) \) as a function of \( w(n)) \)
