(Solved):   Query on TVS Diode and Choke. INSWER THIS PLZ In the described scenario we have Zener ...

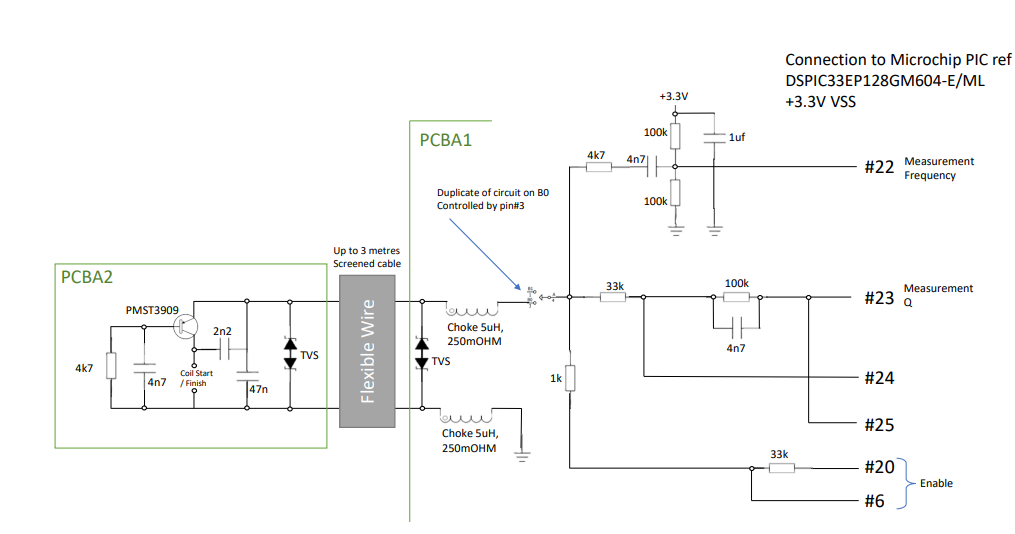

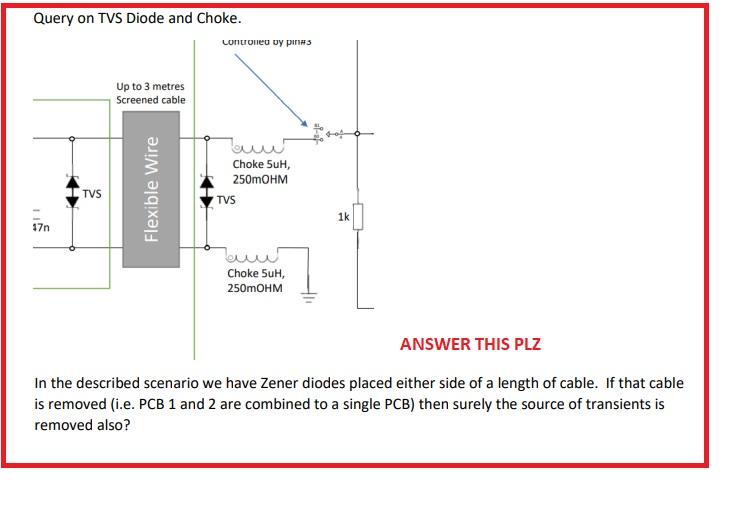

Query on TVS Diode and Choke. INSWER THIS PLZ In the described scenario we have Zener diodes placed either side of a length of cable. If that cable is removed (i.e. PCB 1 and 2 are combined to a single PCB) then surely the source of transients is removed also? A coil that is installed on a brittle iron core is examined by the circuit. A permanent magnet's poles are then placed with two of these assemblies on each. Ferrous particles are drawn to the magnet, and when they become a part of the measurement circuit, the frequency and current rhange. The difference in value from the reference is the meacured value. There are no additional irnn if
