(Solved): The statically indeterminate beam shown in the figure is subjected to a symmetrical triang ...

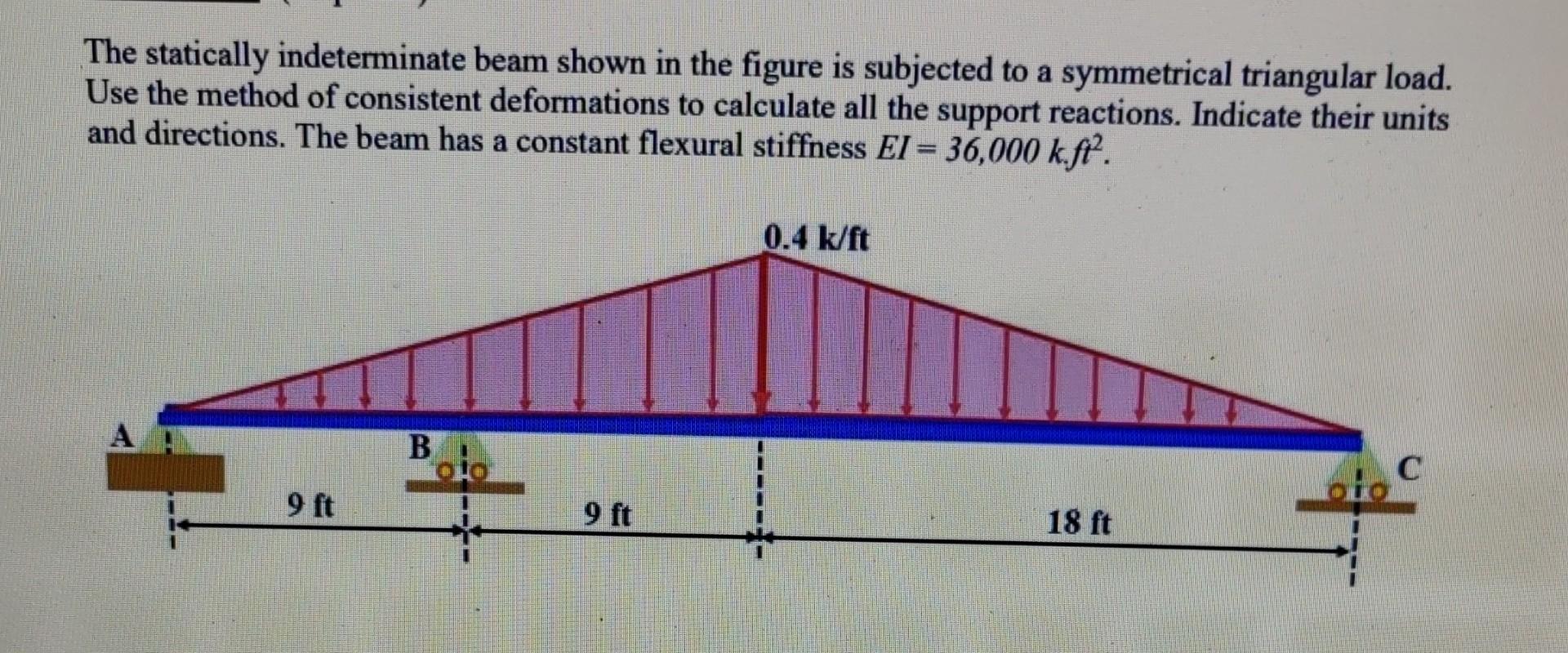

The statically indeterminate beam shown in the figure is subjected to a symmetrical triangular load. Use the method of consistent deformations to calculate all the support reactions. Indicate their units and directions. The beam has a constant flexural stiffness EI = 36,000 k.ft?. 0.4 k/ft B 010 C LO 9 ft 9 ft 18 ft
Expert Answer
Solutions since it is an indetrminate structure we need to apply equations of consistent deformation to find Reactions in the beam. So if we remove support B then it will become determinate. Then we can easily find deflection at B by the same sys
