(Solved): P2.50 A closed-loop control system is shown in Figure P2.50. (a) Determine th ...

???????

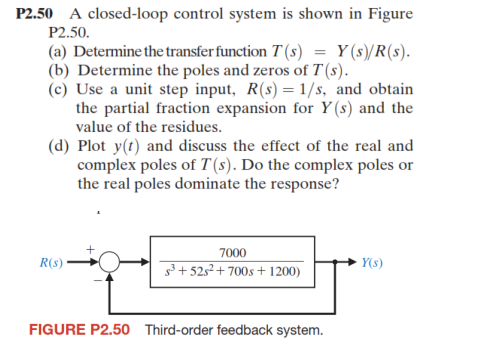

P2.50 A closed-loop control system is shown in Figure P2.50. (a) Determine the transfer function \( T(s)=Y(s) / R(s) \). (b) Determine the poles and zeros of \( T(s) \). (c) Use a unit step input, \( R(s)=1 / s \), and obtain the partial fraction expansion for \( Y(s) \) and the value of the residues. (d) Plot \( y(t) \) and discuss the effect of the real and complex poles of \( T(s) \). Do the complex poles or the real poles dominate the response? FIGURE P2.50 Third-order feedback system.
