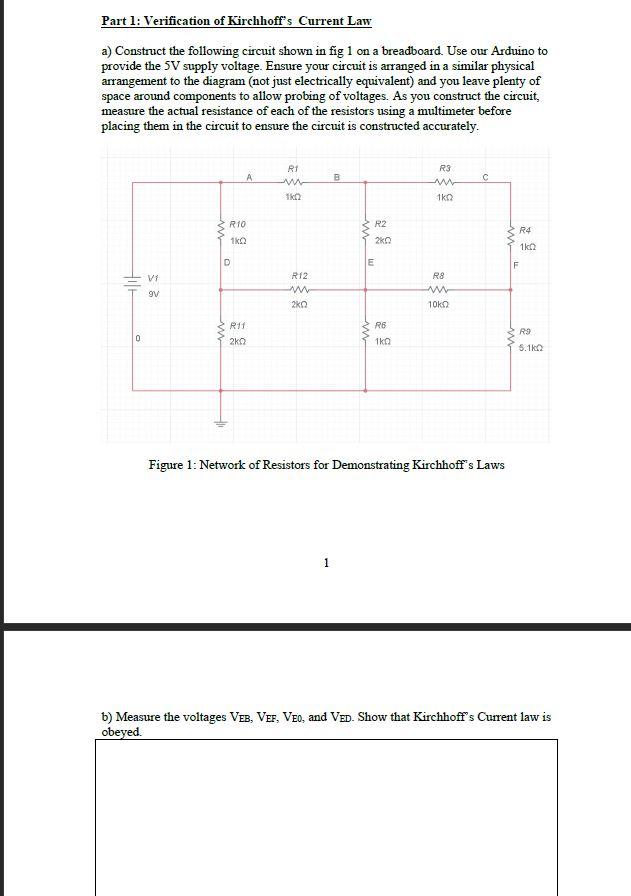

Part 1: Verification of Kirchhoff's Current Law a) Construct the following circuit shown in fig 1 on a breadboard. Use our Arduino to provide the 5V supply voltage. Ensure your circuit is arranged in a similar physical arrangement to the diagram (not just electrically equivalent) and you leave plenty of space around components to allow probing of voltages. As you construct the circuit, measure the actual resistance of each of the resistors using a multimeter before placing them in the circuit to ensure the circuit is constructed accurately. A ? R1 W 12 R3 WW 1k R10 w w R2 2KO R4 1kg 1k D E F Vi 9V R12 WM 20 R8 W 10k? R11 20 0 RE Iko R9 w w 5.1k Figure 1: Network of Resistors for Demonstrating Kirchhoff's Laws 1 6) Measure the voltages VEB, VEF, VED, and VED. Show that Kirchhoff's Current law is obeyed.
