(Solved): Part 3: Long Answer Question Show all of your work on the noxt page, and write your answers in the ...

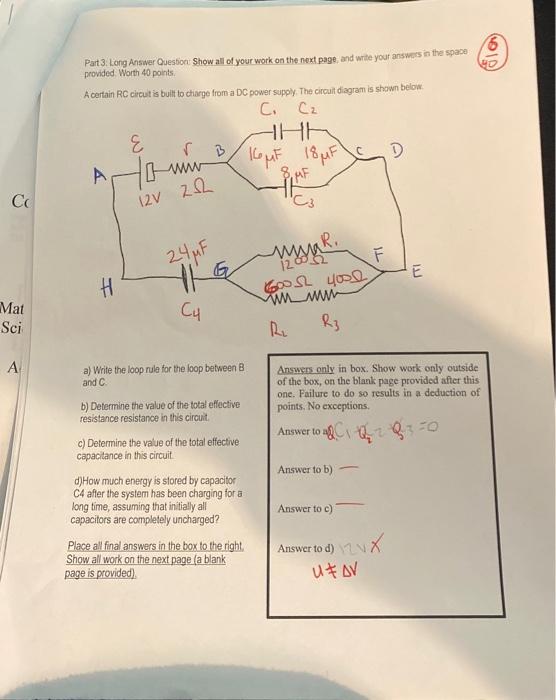

Part 3: Long Answer Question Show all of your work on the noxt page, and write your answers in the spape. provided. Worth 40 points. Acartain RC chat is bult to ctiarge from a DC power supply. The circult diagram is shown below: a) Write the loop rula for the loop between $B$ and $C$. b) Determine the value of the total effective resistance resistance in this circuit. c) Determine the value of the total effective capacilance in this circuit. d) How much energy is stored by capacitor $\mathrm{C}4$ after the system has been charging for a long time, assuming that intially all capacitors are completely uncharged? Place all final answers in the box to the right. Show all work on the next page (a blank page is provided). Answers only in box. Show wotk only outside of the box, on the blank page provided after this one. Failure to do so results in a deduction of points. No exceptions. Answer to af Answer to b) Answer to c) Answer to d) $u\ne \Delta v$
