(Solved): Part A Draw the shear diagram for the overhang beam. Click on "add vertical line off" to add dis ...

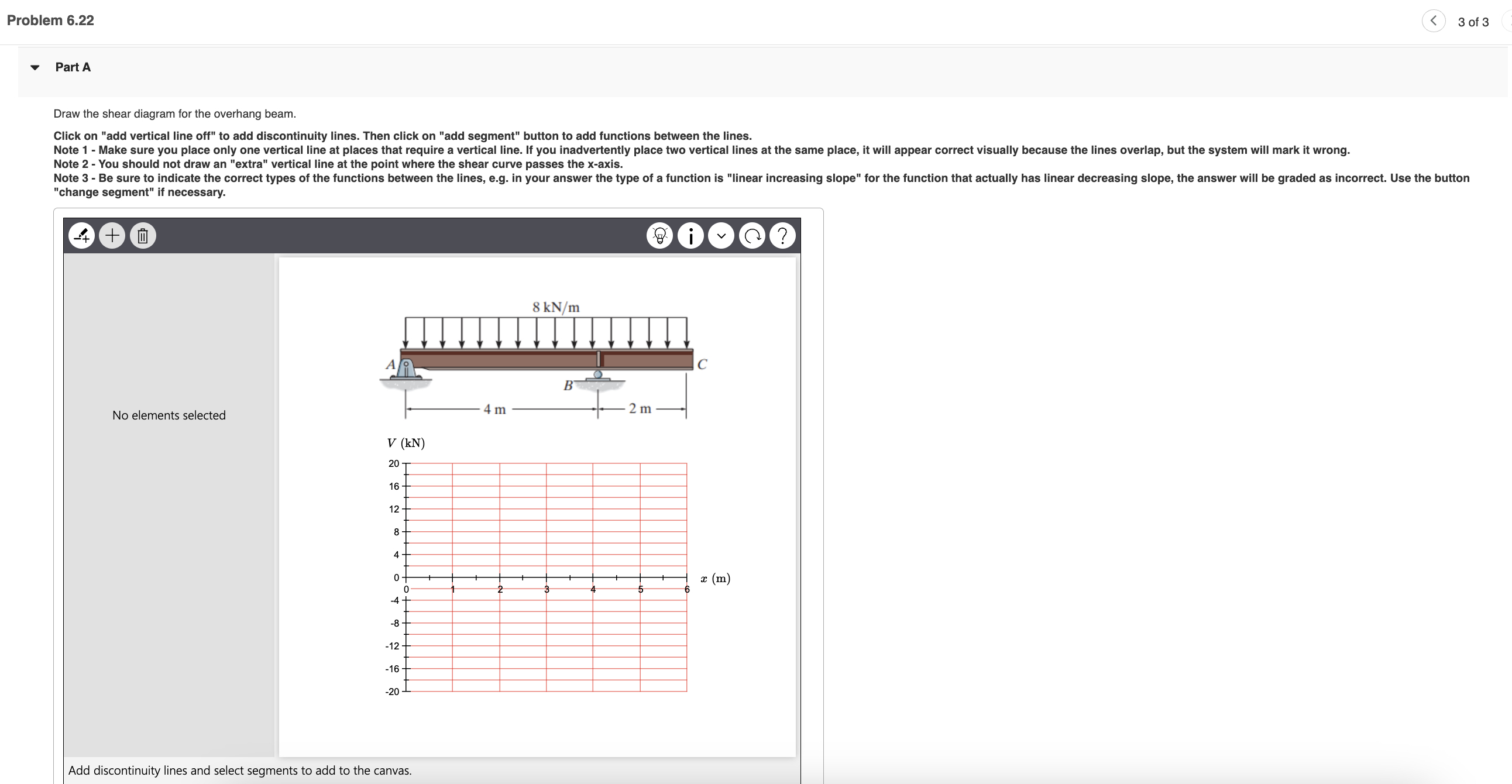

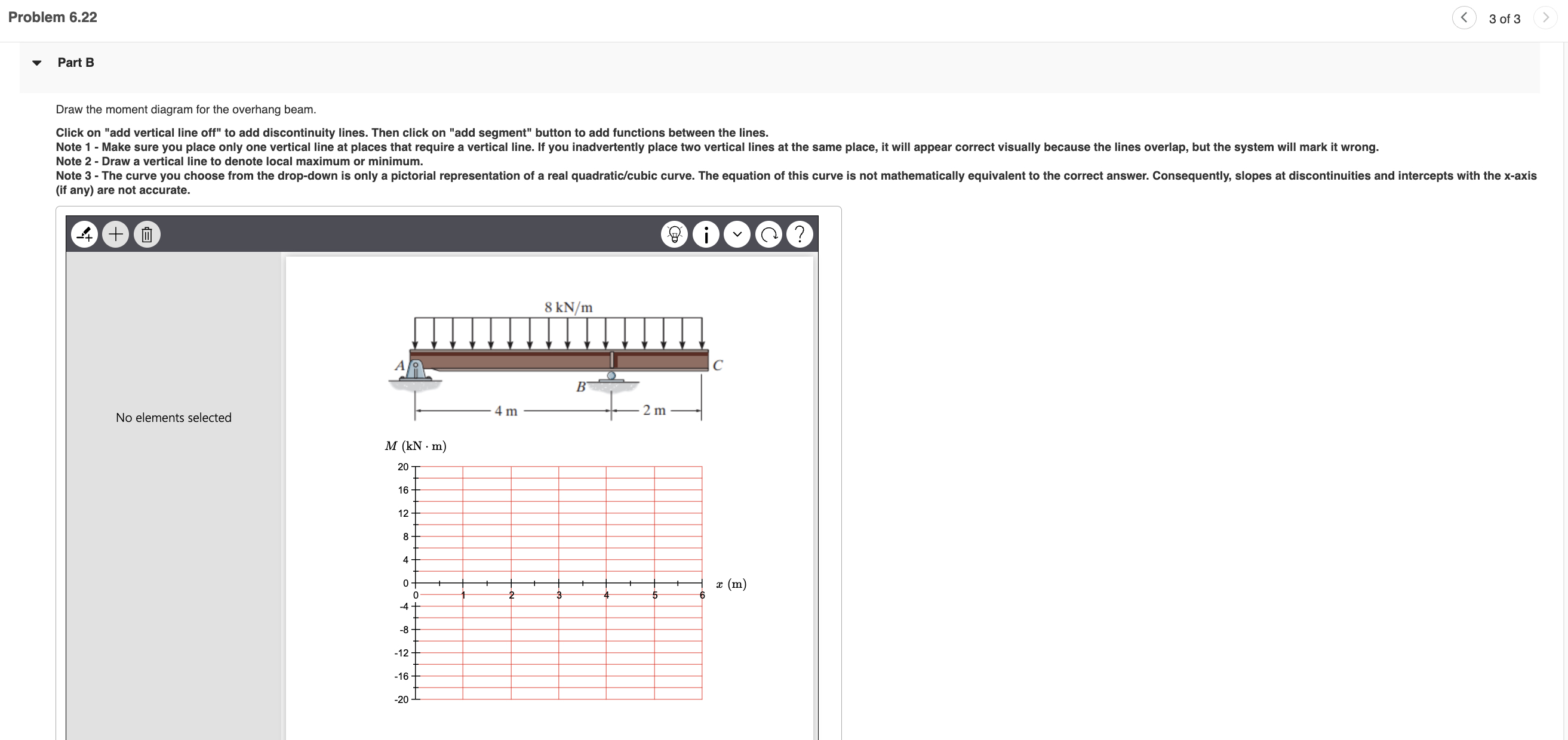

Part A Draw the shear diagram for the overhang beam. Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions between the lines. Note 2 - You should not draw an "extra" vertical line at the point where the shear curve passes the x-axis. "change segment" if necessary. No elements selected Add discontinuity lines and select segments to add to the canvas. Problem 6.22 3 of 3 Part B Draw the moment diagram for the overhang beam. Click on "add vertical line off" to add discontinuity lines. Then click on "add segment" button to add functions between the lines. Note 2 - Draw a vertical line to denote local maximum or minimum. (if any) are not accurate. No elements selected
