(Solved): Part A. Wheatstone Bridge Circuit with a Voltage Source Vs For the circuit as shown below, given tha ...

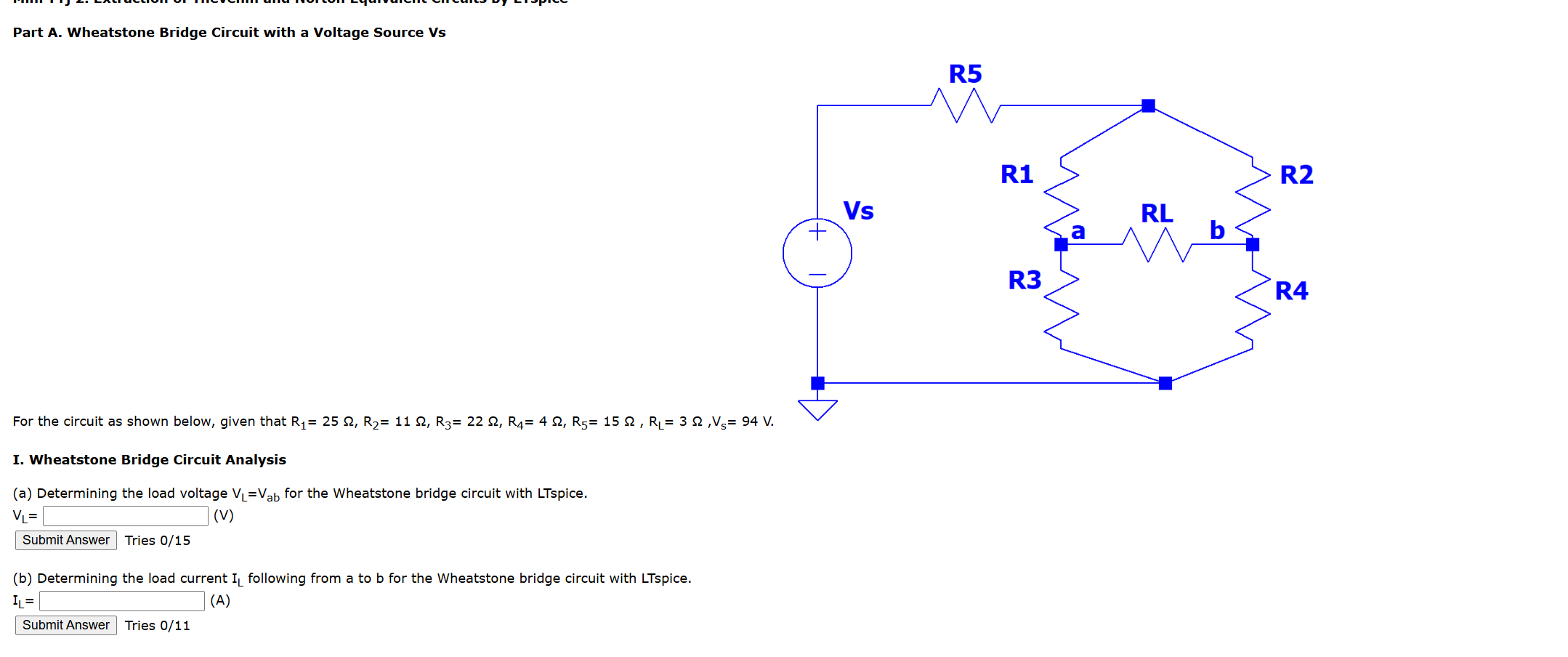

Part A. Wheatstone Bridge Circuit with a Voltage Source Vs
For the circuit as shown below, given that R_(1)=25\Omega ,R_(2)=11\Omega ,R_(3)=22\Omega ,R_(4)=4\Omega ,R_(5)=15\Omega ,R_(L)=3\Omega ,V_(s)=94v.
I. Wheatstone Bridge Circuit Analysis
(a) Determining the load voltage V_(L)=V_(ab) for the Wheatstone bridge circuit with LTspice.
V_(L)=
Submit Answer Tries( 0)/(15)
(b) Determining the load current I_(L) following from a to b for the Wheatstone bridge circuit with LTspice.
I_(L)=
(A)
