(Solved): Piezometers are to be placed at four separate locations in a soil deposit that serves as the foundat ...

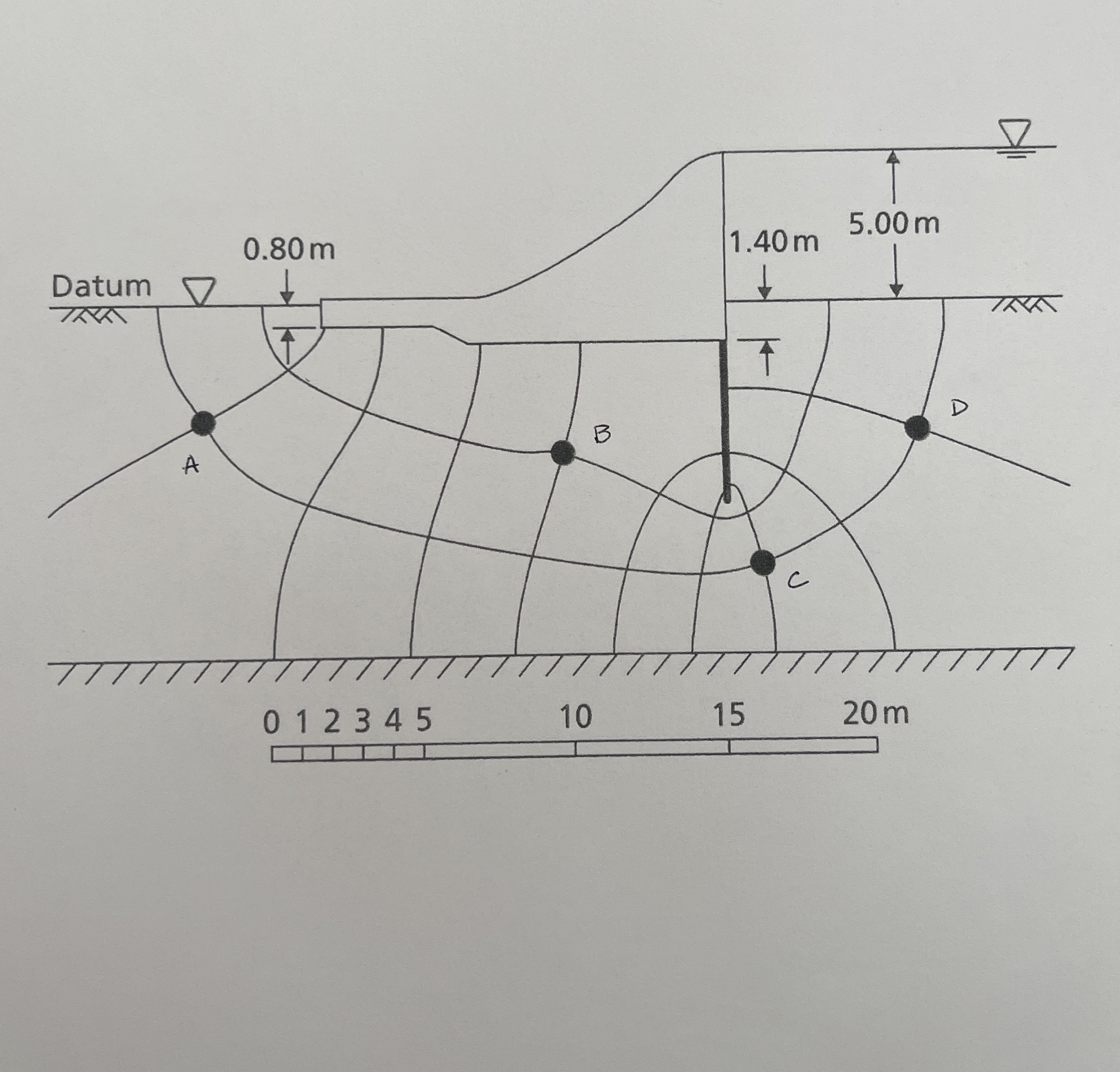

Piezometers are to be placed at four separate locations in a soil deposit that serves as the foundation for a concrete spillway, including a cut-off sheet pile wall, as shown (next page). The exact locations of the piezometers are identified by the four (thick) black dots. (A) Determine the total number of flow lines, flow channels, equipotential lines, and piezometric (head) drops. (B) Determine the elevation head, pressure head, and total (piezometric) head at all four separate locations where piezometers are to be installed. NOTE 1: The labeling (or numbering) of these four points is left to your own discretion. NOTE 2: Unit weight of water

, or

.
