(Solved): please answer #2 and 3 Data collection: 1. Complete the tables for the 3 fixed resistances. 2. Using ...

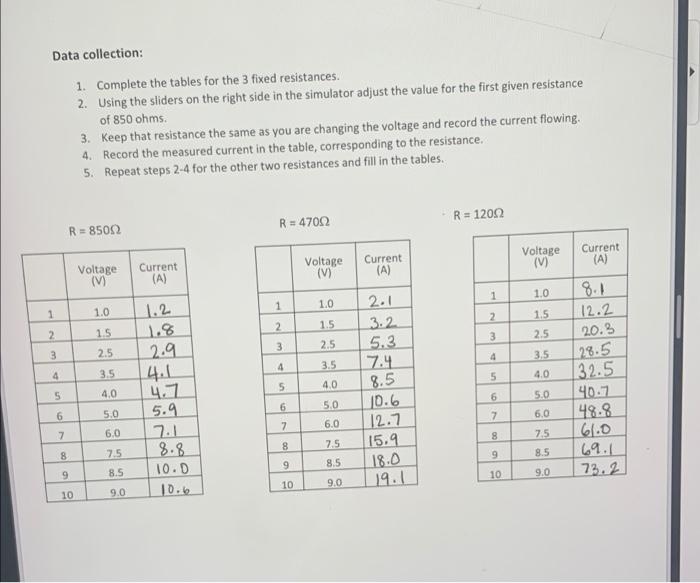

Data collection: 1. Complete the tables for the 3 fixed resistances. 2. Using the sliders on the right side in the simulator adjust the value for the first given resistance of 850 ohms. 3. Keep that resistance the same as you are changing the voltage and record the current flowing. 4. Record the measured current in the table, corresponding to the resistance. 5. Repeat steps \( 2-4 \) for the other two resistances and fill in the tables. \( R=850 \Omega \) \( R=470 \Omega \) \( R=120 \Omega \) 1. Using the Vernier Graphical Analysis tool, plot the graphs Voltage vs. Current, and find the slope for each graph. Insert your graphs into the lab report. 2. What kind of relationship did you obtain? 3. Calculate the \% error for the 3 resistors (slope - experimental value; given resistance accepted value). Include your calculations.
