(Solved): Please explain in detail, thank you. Using Multisim, construct a simple NMOS inverter as shown be ...

Please explain in detail, thank you.

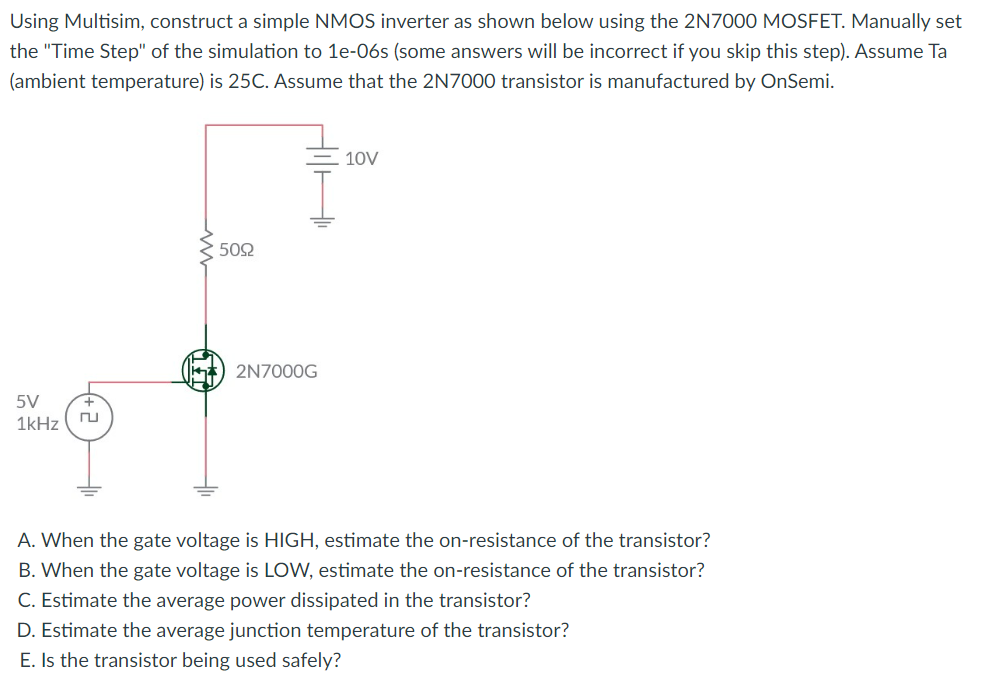

Using Multisim, construct a simple NMOS inverter as shown below using the 2 N7000 MOSFET. Manually set the "Time Step" of the simulation to 1e-06s (some answers will be incorrect if you skip this step). Assume Ta (ambient temperature) is 25C. Assume that the $2\mathrm{N}7000$ transistor is manufactured by OnSemi. A. When the gate voltage is HIGH, estimate the on-resistance of the transistor? B. When the gate voltage is LOW, estimate the on-resistance of the transistor? C. Estimate the average power dissipated in the transistor? D. Estimate the average junction temperature of the transistor? E. Is the transistor being used safely?
