Please show each step fully and clearly, thank you. I will definitely rate.

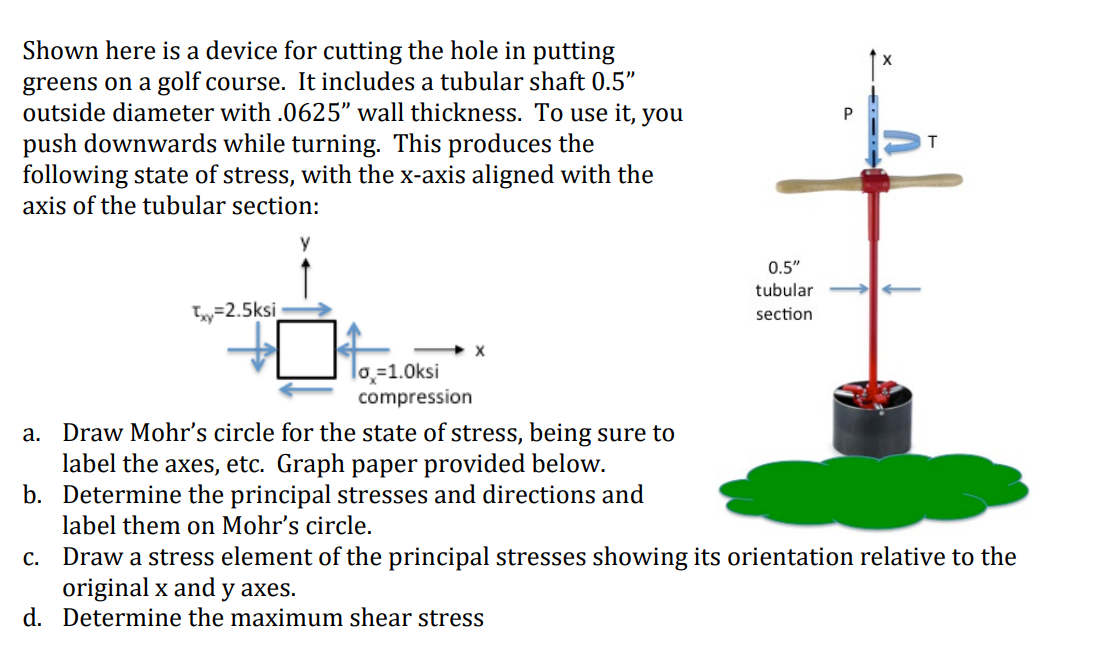

P Shown here is a device for cutting the hole in putting greens on a golf course. It includes a tubular shaft 0.5" outside diameter with .0625” wall thickness. To use it, you push downwards while turning. This produces the following state of stress, with the x-axis aligned with the axis of the tubular section: T 0.5" tubular section Ty=2.5ksi ? 0 =1. Oksi compression a. Draw Mohr's circle for the state of stress, being sure to label the axes, etc. Graph paper provided below. b. Determine the principal stresses and directions and label them on Mohr's circle. c. Draw a stress element of the principal stresses showing its orientation relative to the original x and y axes. d. Determine the maximum shear stress
