please show the plot clearly in excel and answer all parts. thank you. 2. Plot the grain size distribution curves for the following soils and for each report: a) ( D_{10} ), b) ( D_{30} ), c) ( D_{60} ), d) coefficient of uniformity ( C_{u} ), e) coefficient of curvature ( C_{c} ) and f) percent gravel, sand and fines (clay ( + )

Question

please show the plot clearly in excel and answer all parts. thank you.

$2. Plot the grain size distribution curves for the following soils and for each report: a) $ D_{10} $, b) $ D_{30} $, c)$

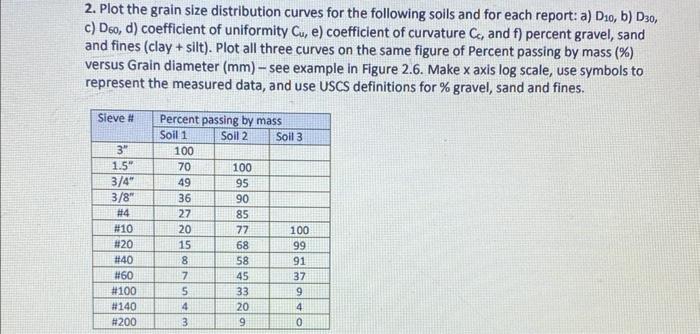

2. Plot the grain size distribution curves for the following soils and for each report: a) $ D_{10} $, b) $ D_{30} $, c) $ D_{60} $, d) coefficient of uniformity $ C_{u} $, e) coefficient of curvature $ C_{c} $ and f) percent gravel, sand and fines (clay $ + $ silt). Plot all three curves on the same figure of Percent passing by mass (\%) versus Grain diameter $ (\mathrm{mm}) $ - see example in Figure 2.6. Make $ x $ axis log scale, use symbols to represent the measured data, and use USCS definitions for $ \% $ gravel, sand and fines.
